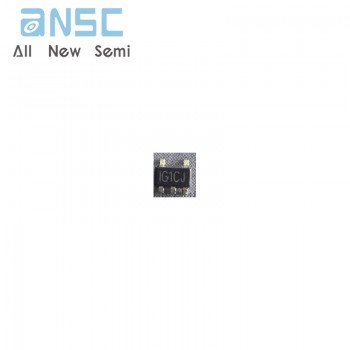

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MP2000DJ-ADJ-LF-Z Low Input Voltage 150mA Linear Regulator SOT23
Manufacturer Product Number
MP2000DJ-ADJ-LF-Z
Description
MP2000DJ-ADJ-LF-Z Low Input Voltage 150mA Linear Regulator SOT23
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP2000 is a low-voltage, low-dropout bipolar linear regulator. It operates from 1.35V to 6.0V input voltage, and regulates the output voltage from as low as 0.5V.
The MP2000 can supply up to 150mA of load current. The MP2000 features thermal overload and current limit protection. It is available in a 5-pin TSOT23-5 package.
Product Features
• Operates with VIN = 1.35V
• Low 300mV Dropout at 150mA Output
• ±3 percent Accurate Output Voltage
• Fixed and Adjustable Output Voltage Option
• Better Than 0.001%/mA Load Regulation
• Stable With Low-ESR Output Capacitor
• Low 65µA Ground Current
• Internal Thermal Protection
• Current Limit Protection
• 6µA Typical Quiescent Current at Shutdown
Product Applications
• Low Current Regulators
• Battery Powered Systems
• Cellular Phones
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2000DJ-ADJ-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Current - Output | 150mA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP2000 |
Product Photos
For more product information, please download the PDF
