Hot-selling and scarce SI8642BD-B-IS Low-Power Quad-Channel Digital Isolators SOP16 spot stock

Product Descriptions

Silicon Lab's family of ultra-low-power digital isolators are CMOS devices offering substantial data rate, propagation delay, power, size, reliability, and external BOM advantages over legacy isolation technologies. The operating parameters of these products remain stable across wide temperature ranges and throughout device service life for ease of design and highly uniform performance. All device versions have Schmitt trigger inputs for high noise immunity and only require VDD bypass capacitors.

Data rates up to 150 Mbps are supported, and all devices achieve propagation delays of less than 10 ns. Enable inputs provide a single point control for enabling and disabling output drive. Ordering options include a choice of isolation ratings (1.0, 2.5, 3.75 and 5 kV) and a selectable fail-safe operating mode to control the default output state during power loss. All products >1 kV are safety certified by UL, CSA, VDE, and CQC, and products in wide-body packages support reinforced insulation withstanding up to 5 kVRMS.

Product Features

• UL 1577 recognized

• Up to 5000 VRMS for 1 minute

• CSA component notice 5A approval

• IEC 60950-1, 61010-1, 60601-1 (reinforced insulation)

• VDE certification conformity

• Si864xxT options certified to reinforced VDE 0884-10

• All other options certified to IEC 60747-5-5 and reinforced 60950-1

• CQC certification approval

• GB4943.1

Product Applications

• Industrial automation systems

• Medical electronics

• Hybrid electric vehicles

• Isolated switch mode supplies

• Isolated ADC, DAC

• Motor control

• Power inverters

• Communications systems

Product Specification

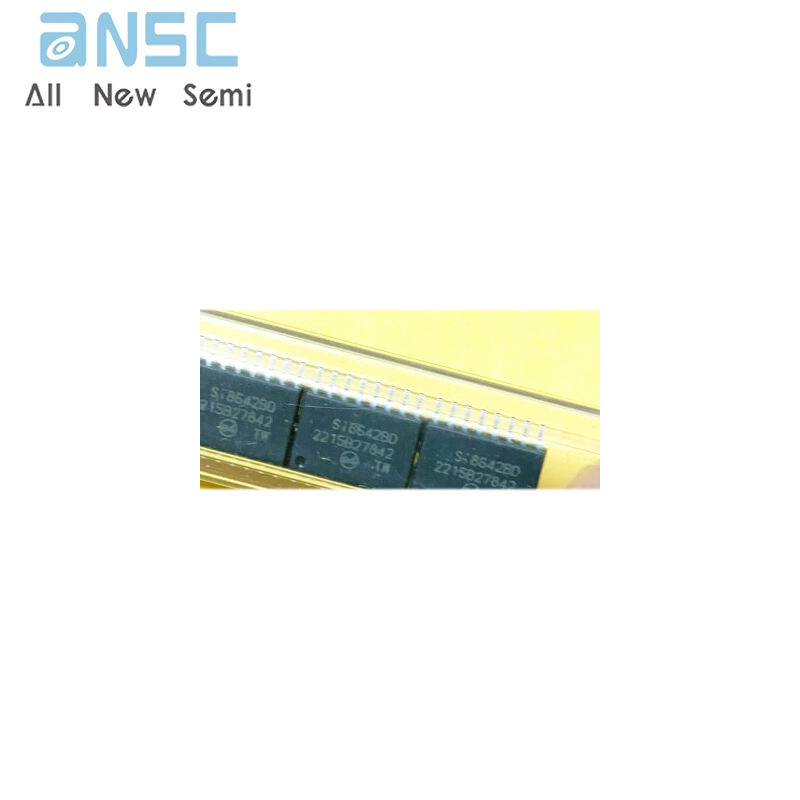

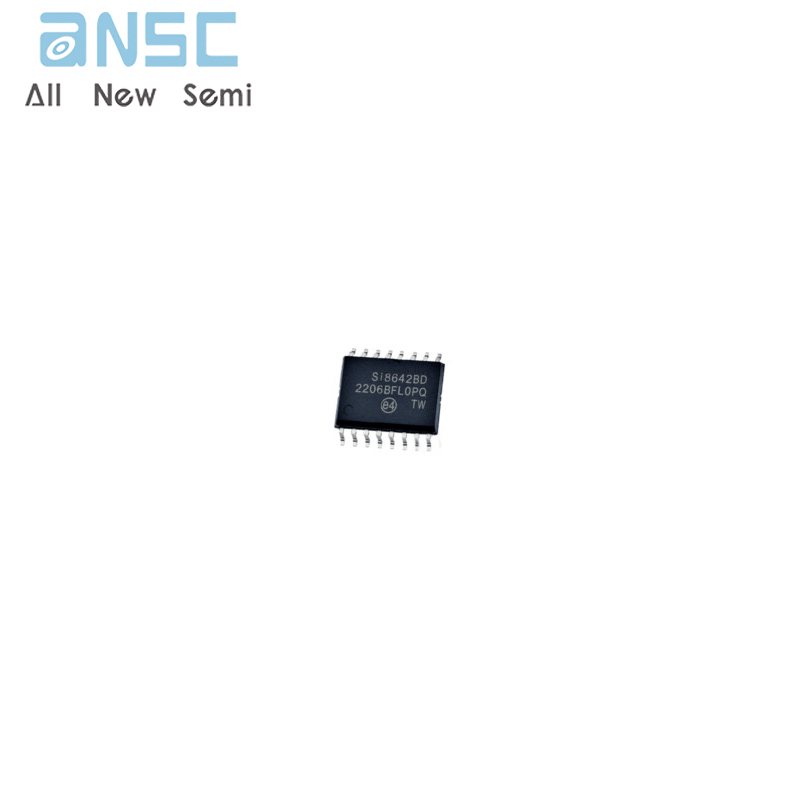

Product Photos

For more product information, please download the PDF
