Hot-selling and scarce IS61LV256-12TI 32K X 8 LOW VOLTAGE CMOS STATIC RAM TSOP-28 spot stock

Product Descriptions

The IS61LV256  is  a  very  high-speed,  low  power,32,768-word by 8-bit static RAM. It is fabricated using high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques,yields access times as fast as 12 ns maximum.

WhenCE is HIGH (deselected),the device assumes a standby mode  at  which  the  power  dissipation  is  reduced  to50 µW (typical) with CMOS input levels.

Easy memory expansion is provided by using an active LOW Chip Enable (CE).The active LOW Write Enable (WE)controls both writing and reading of the memory.

The IS61LV256 is available in the JEDEC standard 28-pin,300-mil DIP and SOJ, plus the 450-mil TSOP package.

Product Features

•  High-speed access time: 12, 15, 20, 25 ns

•  Automatic power-down when chip is deselected

•  CMOS low power operation

— 345 mW (max.) operating

— 7 mW (max.) CMOS standby

•  TTL compatible interface levels

•  Single 3.3V power supply

•  Fully static operation: no clock or refresh required

•  Three-state outputs

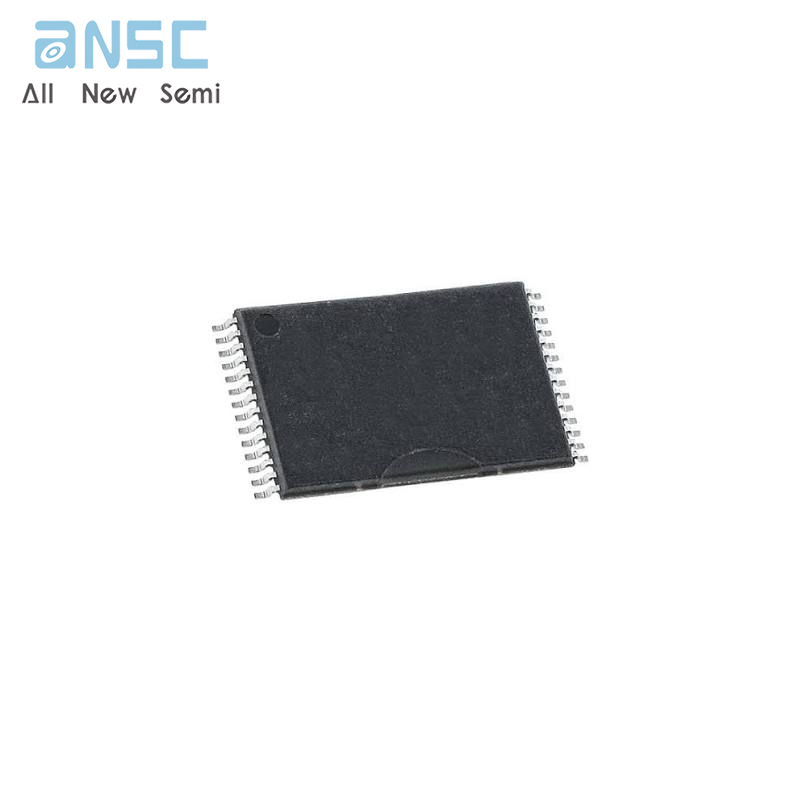

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
