Hot-selling and scarce ADV7171KSUZ Digital PAL/NTSC Video Encoder TQFP44 spot stock
Manufacturer Product Number
ADV7171KSUZ
Description

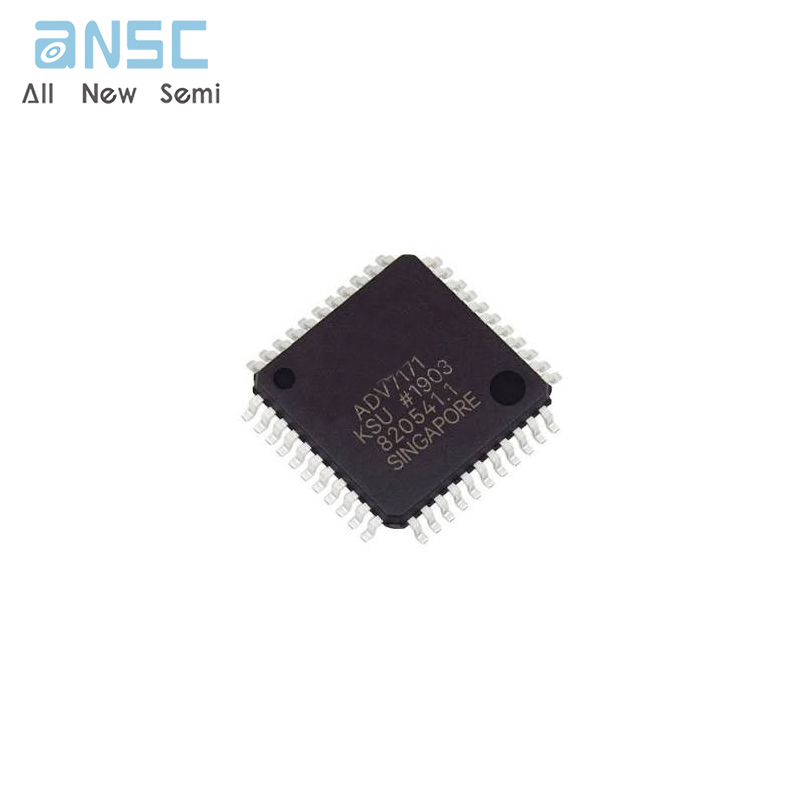

ADV7171KSUZ Digital PAL/NTSC Video Encoder TQFP44 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
ITU-R 1 BT601/656 YCrCbto PAL/NTSC video encoder
High quality 10-bit video DACs
SSAF (super sub-alias filter)
Advanced power management features
CGMS (copy generation management system)
WSS (wide screen signalling)
Simultaneous Y, U,V, C output format
NTSC M, PAL M/N 2, PAL B/D/G/H/I, PAL60
Single 27 MHz clock required (×2 oversampling)
80 dB video SNR
32-bit direct digital synthesizer for color subcarrier
Multistandard video output support
Composite (CVBS)
Components S-Video (Y/C),YUV, and RGB
EuroSCART output (RGB + CVBS/LUMA)
Component YUV + CHROMA
Video input data port supports
CCIR-656 4:2:2 8-bit parallel input format
4:2:2 16-bit parallel input format
Programmable simultaneous composite and S-Video or RGB
(SCART)/YUV video outputs
Programmable luma filters (low-pass [PAL/NTSC]) notch,
extended (SSAF, CIF, and QCIF)
Programmable chroma filters (low-pass [0.65 MHz, 1.0 MHz,
1.2 MHz and 2.0 MHz], CIF and QCIF)
Programmable VBI (vertical blanking interval)
Programmable subcarrier frequency and phase
Programmable LUMA delay
Individual on/off control of each DAC
CCIR and square pixel operation
Integrated subcarrier locking to external video source
Color signal control/burst signal control
Interlaced/noninterlaced operation
Complete on-chip video timing generator
Programmable multimode master/slave operation
Macrovision®AntiTaping Rev. 7.1 (ADV7170 only)3
Closed captioning support
Teletext insertion port (PAL-WST)
On-board color bar generation
On-board voltage reference
2-wire serial MPU interface (I2C®-compatible and Fast I2C)
Single supply 5 V or 3.3 V operation
Small 44-lead MQFP/TQFP packages
Industrial temperature grade = −40°C to +85°C4
Product Applications
High performance DVD playback systems, portable video
equipment including digital still cameras and laptop PCs,
video games, PC video/multimedia and digital
satellite/cable systems (set-top boxes/IRD)
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADV7171KSUZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Encoders, Decoders, Converters | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Discontinued at DigiKey |
| Type | Video Encoder |
| Applications | Set-Top Boxes, Video Players |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Package / Case | 44-TQFP |
| Supplier Device Package | 44-TQFP (10x10) |
| Base Product Number | ADV7171 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
ADV7171KSUZ Digital PAL/NTSC Video Encoder TQFP44 spot stock
3In stock:
Can ship immediately
