EN2392QI 9A PowerSoC Voltage Mode Synchronous Buck With Integrated Inductor QFN68 spot stock
Manufacturer Product Number
EN2392QI
Description
EN2392QI 9A PowerSoC Voltage Mode Synchronous Buck
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The EN2392QI is a Power System on a Chip(PowerSoC) DC-DC converter. It integrates MOSFET switches, small-signal control circuits, compensation and an integrated inductor in an advanced11x10x3mm QFN module. It offers high efficiency, excellent line and load regulation over temperature. The EN2392QI operates over a wide input voltage range and is specifically designed to meet the precise voltage and fast transient requirements of highperformance products. The EN2392QI features frequency synchronization to an external clock, power OK output voltage monitor, programmable soft-start along with thermal and over current protection. The device’s advanced circuit design, ultra high switching frequency and proprietary integrated inductor technology delivers high-quality, ultra compact, nonisolated DC-DC conversion.
The Altera Enpirion solution significantly helps in system design and productivity by offering greatly simplified board design, layout and manufacturing requirements. In addition, overall system level reliability is improved given the small number of components required with the Altera Enpirion solution.
All Altera Enpirion products are RoHS compliant , halogen free and are compatible with lead-free manufacturing environments.
Product Features
• Integrated Inductor, MOSFETS,Controller
• Total Solution Size Estimate: 235 mm2
• Wide Input Voltage Range:4.5V – 13.2V
• 1 % Initial Output Voltage Accuracy
• Master/Slave Parallel Operation (up to 4 devices)
• Frequency Synchronization (External Clock)
• Output Enable Pin and Power OK Signal
• Programmable Soft-Start Time
• Pin Compatible with EN2390QI
• Under Voltage Lockout Protection (UVLO)
• Over Current and Short Circuit Protection
• Pre-Bias Startup Protection
• Thermal Soft-Shutdown Protection
• RoHS Compliant, MSL Level 3,260oC Reflow
Product Applications
• Space Constrained Applications
• Distributed Power Architectures
• Output Voltage Ripple Sensitive Applications
• Beat Frequency Sensitive Applications
• Servers, Embedded Computing Systems, LAN/SAN Adapter Cards, RAID Storage Systems, Industrial Automation,Test and Measurement, and Telecommunications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EN2392QI |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | Enpirion® |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 0.75 ~ 3.3V |
| Current - Output (Max) | 9A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 76-PowerBFQFN Module |
| Size / Dimension | 0.43" L x 0.39" W x 0.12" H (11.0mm x 10.0mm x 3.0mm) |
| Supplier Device Package | 76-QFN (11x10) |
| Control Features | Enable, Active High |
| Base Product Number | EN2392 |

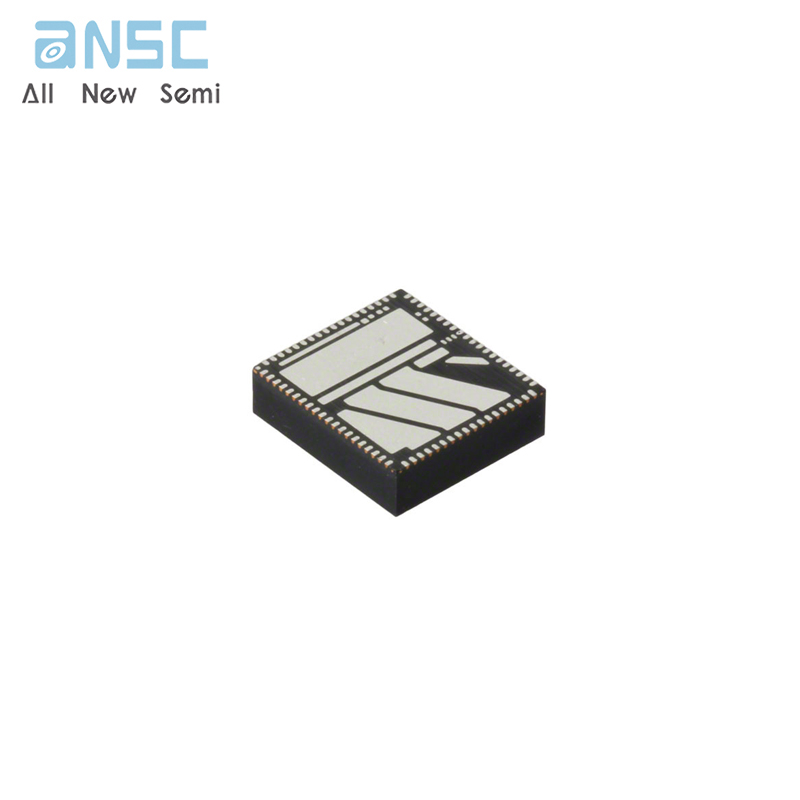

Product Photos
