ISL6740IVZ-T Flexible Double Ended Voltage and Current Mode PWM Controllers TSSOP-16 spot stock
Manufacturer Product Number
ISL6740IVZ-T
Description
ISL6740IVZ-T Flexible Double Ended Voltage and Current Mode PWM Controllers
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Precision duty cycle and dead time control
• 95µA start-up current
• Adjustable delayed overcurrent shutdown and restart (ISL6740)
• Adjustable short-circuit shutdown and restart
• Adjustable oscillator frequency up to 2MHz
• Bidirectional synchronization
• Inhibit signal
• Internal over-temperature protection
• System over-temperature protection using a thermistor or sensor
• Adjustable soft-start
• Adjustable input undervoltage lockout
• Fault signal
• Tight tolerance voltage reference over line, load and temperature
• Pb-free (RoHS compliant)
Product Applications
• Telecom and datacom power
• Wireless base station power
• File server power
• Industrial power systems
• DC transformers and bus regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ISL6740IVZ-T |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 83% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ISL6740 |

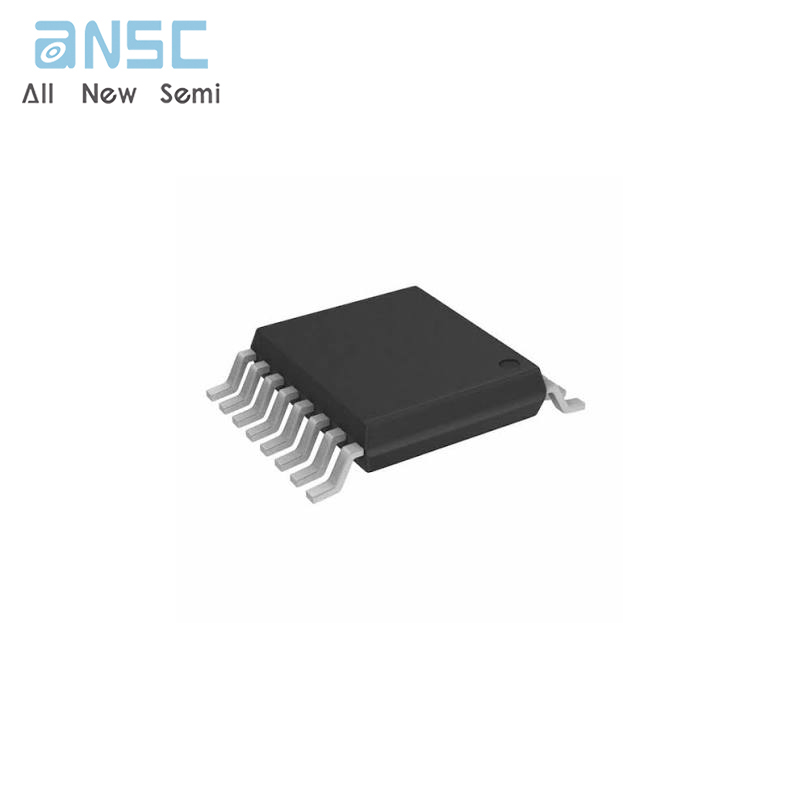

Product Photos
For more product information, please download the PDF
