Hot-selling and scarce LM337H THREE-TERMINAL ADJUSTABLE NEGATIVE VOLTAGE REGULATORS CAN3 spot stock

Product Descriptions

The LM137 series are adjustable 3-terminal negative voltage regulators capable of supplying in excess - 1.5A over a -1 .2 to -37V output voltage range .They are exceptionally easy to use and require onlytwo external resistors to set the output voltage. Further, both line and load regulation are better thanstandard fixed regulators . Also, LM137 regulatorsare supplied in standard transistor packages whichare easily  mounted  and  handled . In  addition  tohigher  performance  than  fixed  regulators,  theLM137 series offer full overload protection availableonly in integrated circuits . Included on the chip arecurrent limit, thermal overload protection and safearea protection . All overload protection circuitry remains fully functional even if the adjustment terminalis disconnected .​

Product Features

OUTPUT VOLTAGE ADJUSTABLE DOWN TO Vref

1.5A GUARANTEED OUTPUT CURRENT

0.3%/V TYPICAL LOAD REGULATION

0.01%/V TYPICAL LINE REGULATION

CURRENT   LIMIT  CONSTANT  WITH  TEM-PERATURE

RIPPLE REJECTION : 77dB

STANDARD  3-LEAD   TRANSISTOR   PACK AGES

EXCELLENT      THERMAL      REGULATION: 0.002%/V

50ppm/°C TEMPERATURE COEFFICIENT

Product Specification

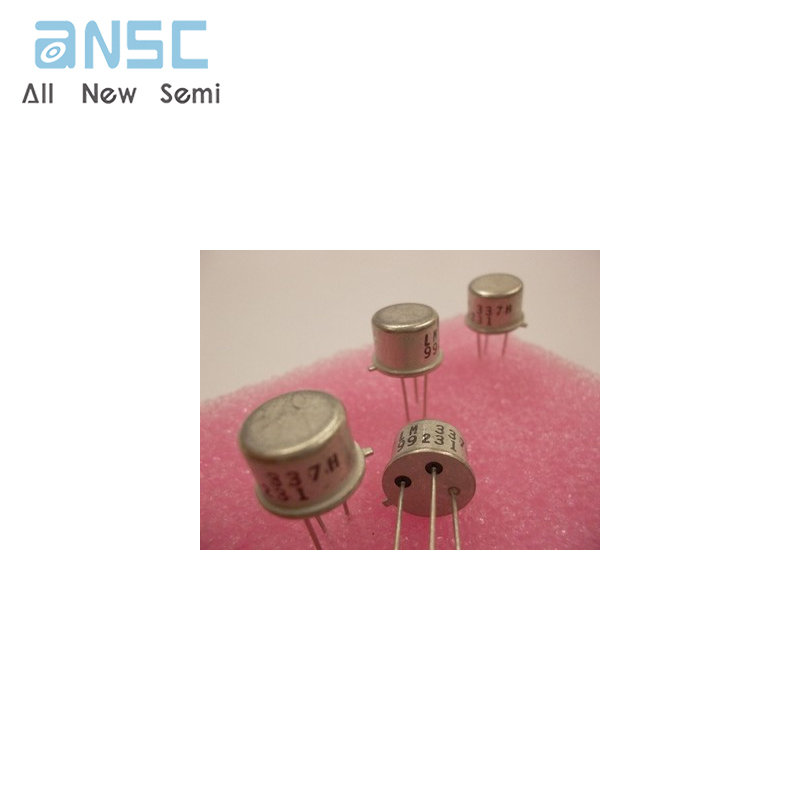

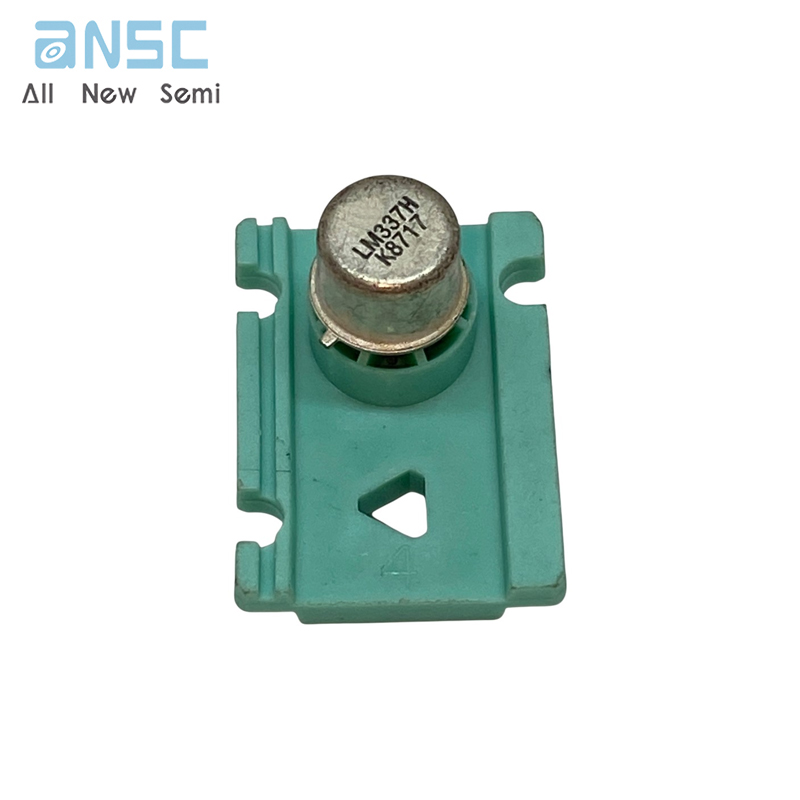

Product Photos

For more product information, please download the PDF
