Hot-selling and scarce LM4040CYM3-2.5-TR Shunt Voltage Reference IC Fixed 2.5V V ±0.5% 15 mA SOT-23-3 spot stock

Product Descriptions

Ideal for space critical applications,the LM4040 andLM4041 precision voltage references are available inthe subminiature SOT-23 surface-mount package .

The LM4040 is available in fixed reverse-breakdownvoltages of 2.500V,4.096V,and 5.000V.The LM4041is available with a fixed 1.225V or an adjustablereverse-breakdown voltage .

The minimum operating current ranges from 60 μA forthe LM4041-1 .2 to 74 μA for the LM4040-5 .0.LM4040versions have a maximum operating current of 15 mA .LM4041 versions have a maximum operating current of12 mA .

The LM4040 and LM4041 have bandgap referencetemperature drift curvature correction and low dynamicimpedance, ensuring stable reverse-breakdownvoltage accuracy over a wide range of operatingtemperatures and currents

Product Features

• Small SOT-23 Package

• No Output Capacitor Required

• Tolerates Capacitive Loads

• Fixed Reverse-Breakdown Voltages of 1.225V,2.500V,4.096V,and 5.000V

•Adjustable Reverse-Breakdown Version

Product Applications

• Battery-Powered Equipment

• Data Acquisition Systems

• Instrumentation

• Process Control

• Energy Management

• Product Testing

•Automotive Electronics

• Precision Audio Components

Product Specification

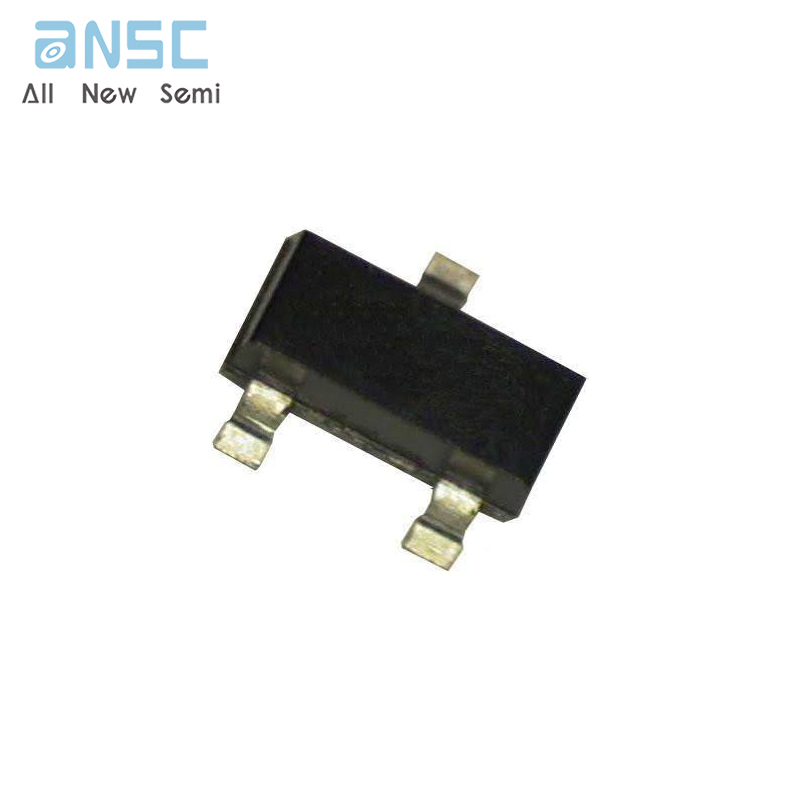

Product Photos

For more product information, please download the PDF
