Product Descriptions

The  MIC3203  is  a  hysteretic,  step-down,constant-current, high-brightness LED (HB LED)driver.It provides an ideal solution for interior/exteriorlighting,architectural and ambient lighting,LED bulbs,and other general illumination applications .

The MIC3203 is well suited for lighting applications thatrequire a wide input voltage range .The hystereticcontrol gives good supply rejection and fast responseduring load transients and PWM dimming . Thehigh-side current sensing and on-chip current-sensecomparator delivers LED current with ±5%accuracy.An external high-side current-sense resistor is used toset the output current.

The MIC3203 offers a dedicated PWM input (DIM)thatenables a wide range of pulsed dimming . Ahigh-frequency switching operation up to 1.5 MHzallows the use of smaller external componentsminimizing space and cost . The MIC3203 offersfrequency dither feature for EMI control

The MIC3203 operates over a junction temperaturefrom –40°C to +125°C and is available in an 8-pin SOICpackage .

A dither disabled version MIC3203-1 is also available inthe same package as the MIC3203 .

Product Features

•4.5V to 42V Input Voltage Range

• High Efficiency (>90%)

• ±5%LED Current Accuracy

• MIC3203:Dither Enabled for Low EMI

• MIC3203-1:Dither Disabled

• High-Side Current Sense

• Dedicated Dimming Control Input

• Hysteretic Control (No Compensation)

• Up to 1.5 MHz Switching Frequency

•Adjustable Constant LED Current

• Overtemperature Protection

•–40°C to +125°C Junction Temperature Range

Product Applications

•Architectural,Industrial,and Ambient Lighting

• LED Bulbs

• Indicators and Emergency Lighting

• Street Lighting

• Channel Letters

• 12V Lighting Systems (MR-16 Bulbs,Under-Cabinet Lighting,Garden/Pathway Lighting)

Product Specifications

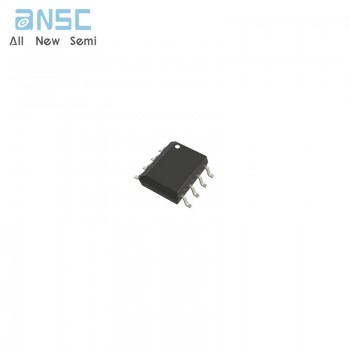

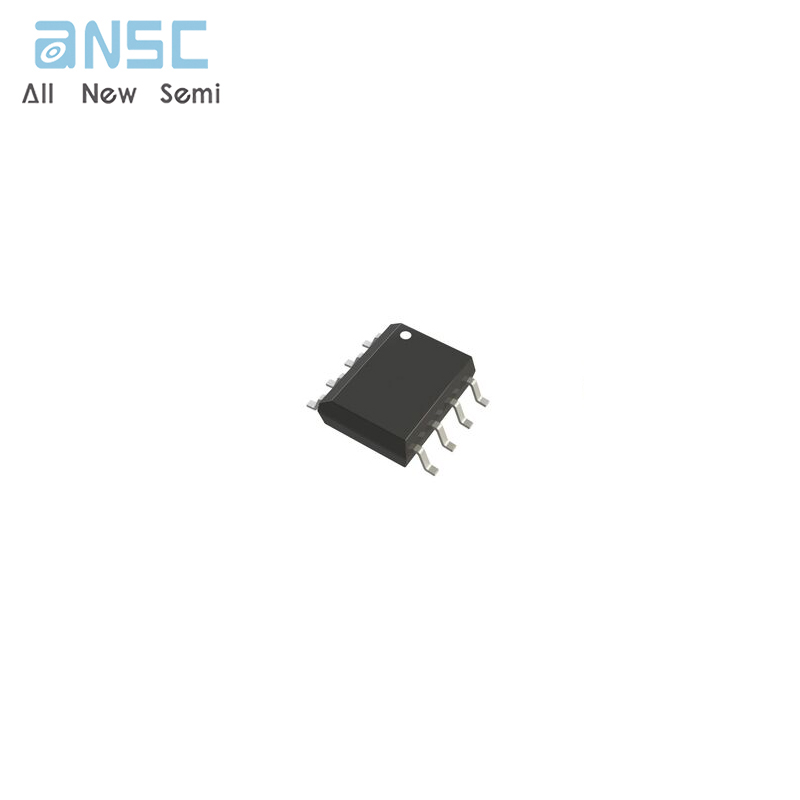

Product Photos

For more product information, please download the PDF
