Hot-selling and scarce IRLML6402TRPBF Ultra Low On-Resistance SOT23 spot stock
Manufacturer Product Number
IRLML6402TRPBF
Description
IRLML6402TRPBF Ultra Low On-Resistance SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These P-Channel MOSFETs from International Rectifier utilizeadvanced processing techniques to achieve extremely low onresistance per silicon area . This benefit, combined with the fastswitching speed and ruggedized device design that HEXFET®power MOSFETs are well known for, provides the designer withan extremely efficient and reliable device for use in battery andload management .
A thermally enhanced large pad leadframe has been incorporatedinto the standard SOT-23 package to produce a HEXFET PowerMOSFET with the industry's smallest footprint . This package,dubbed the Micro3™, is ideal for applications where printedcircuit board space is at a premium . The low profile (<1 .1mm)of the Micro3 allows it to fit easily into extremely thin applicationenvironments such as portable electronics and PCMCIA cards .The thermal resistance and power dissipation are the bestavailable .
Product Features
Ultra Low On-Resistance
P-Channel MOSFET
SOT-23 Footprint
Low Profile (<1 .1mm)
Available in Tape and Reel
Fast Switching
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IRLML6402TRPBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 633 pF @ 10 V |
| Power Dissipation (Max) | 1.3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | IRLML6402 |

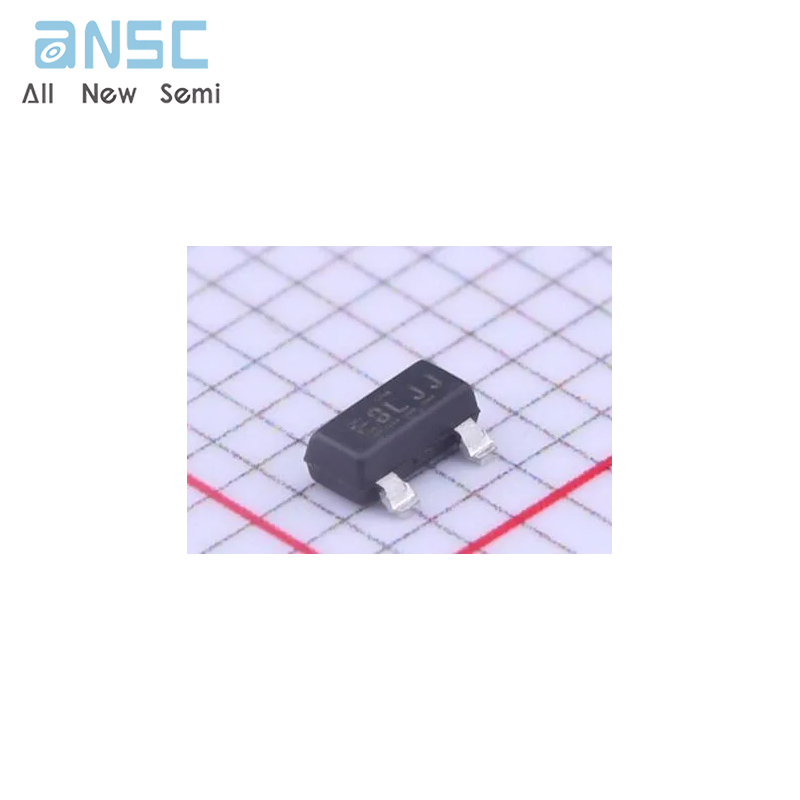

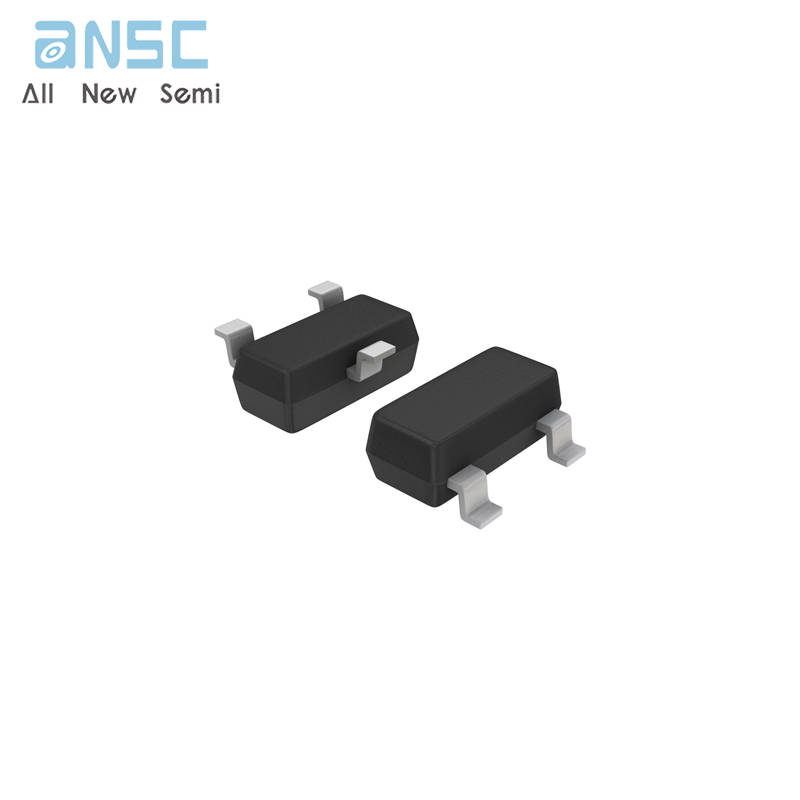

Product Photos
