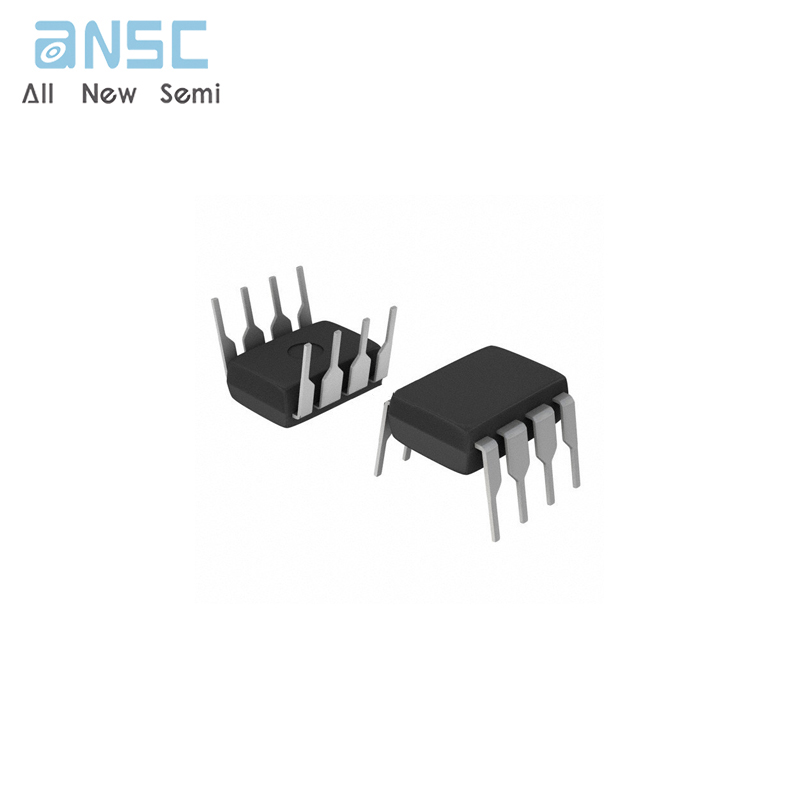

Hot-selling and scarce EL2186CN 250MHz/3mA Current Mode Feedback Amp w/Disable DIP8 spot stock

Product Descriptions

The EL2186C/EL2286C are single/dual current-feedback operational amplifiers which achieve a -3dB bandwidth of 250MHz at a gain of +1 while consuming only 3mA of supply current per amplifier. They will operate with dual supplies ranging from ±1.5V to ±6V, or from single supplies ranging from +3V to +12V. The EL2186C/EL2286C also include a disable/power-down feature which reduces current consumption to 0mA while placing the amplifier output in a high impedance state. In spite of its low supply current, the EL2286C can output 55mA while swinging to ±4V on ±5V supplies. The EL2186C can output 100mA with similar output swings. These attributes make the EL2186C/EL2286C excellent choices for low power and/or low voltage cable-driver, HDSL, or RGB applications.

For Single, Dual and Quad applications without disable, consider the EL2180C (8-Pin Single), EL2280C (8-Pin Dual) or EL2480C (14-Pin Quad). For lower power applications where speed is still a concern, consider the EL2170C/El2176C family which also comes in similar Single, Dual and Quad configurations. The EL2170C/EL2176C family provides a -3dB bandwidth of 70MHz while consuming 1mA of supply current per amplifier.

Product Features

• Single (EL2186C) and dual (EL2286C) topologies

• 3mA supply current (per amplifier)

• 250MHz -3dB bandwidth

• Low cost

• Fast disable

• Powers down to 0mA

• Single- and dual-supply operation down to ±1.5V

• 0.05%/0.05° diff. gain/diff. phase into 150W

• 1200V/µs slew rate

• Large output drive current:

100mA (EL2186C)

55mA (EL2286C)

• Also available without disable in single (EL2180C), dual (EL2280C) and quad (EL2480C)

• Lower power EL2170C/EL2176C family also available (1 mA/ 70MHz) in single, dual and quad

Product Applications

• Low power/battery applications

• HDSL amplifiers

• Video amplifiers

• Cable drivers

• RGB amplifiers

• Test equipment amplifiers

• Current to voltage converters

Product Specification

Product Photos

For more product information, please download the PDF
