Hot sale original SMAJ36CA TVS DIODE 36VWM 58.1VC DO214AC 58.1V Clamp 6.9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)

Manufacturer Product Number

SMAJ36CA

Description

SMAJ36CA TVS DIODE 36VWM 58.1VC DO214AC

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Datasheet

SMAJ36CA

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Features

• Plastic package has Underwriters Laboratory flammability classification 94V-0

• Optimized for LAN protection applications

• Ideal for ESD protection of data lines in accordance with IEC 1000-4-2 (IEC801-2)

• Ideal for EFT protection of data lines in accordance with IEC 1000-4-4 (IEC801-4)

• Low profile package with built-in strain relief for surface mounted applications

• Glass passivated junction

• Low incremental surge resistance, excellent clamping capability

• 400W peak pulse power capability with a 10/1000μS waveform, repetition rate(duty cycle) : 0.01% (300W above 78V)

• Very fast response time

• High temperature soldering guaranteed : 250℃ /10 seconds at terminals

Product Description

TYPE#	DESCRIPTION
ANSC PART#	ANSC- SMAJ36CA
Category	Circuit Protection
	Transient Voltage Suppressors (TVS)
	TVS Diodes
Mfr	/
Series	SMAJ
Packaging	Tape & Reel (TR)
Packaging	Cut Tape (CT)
Part Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	6.9A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)

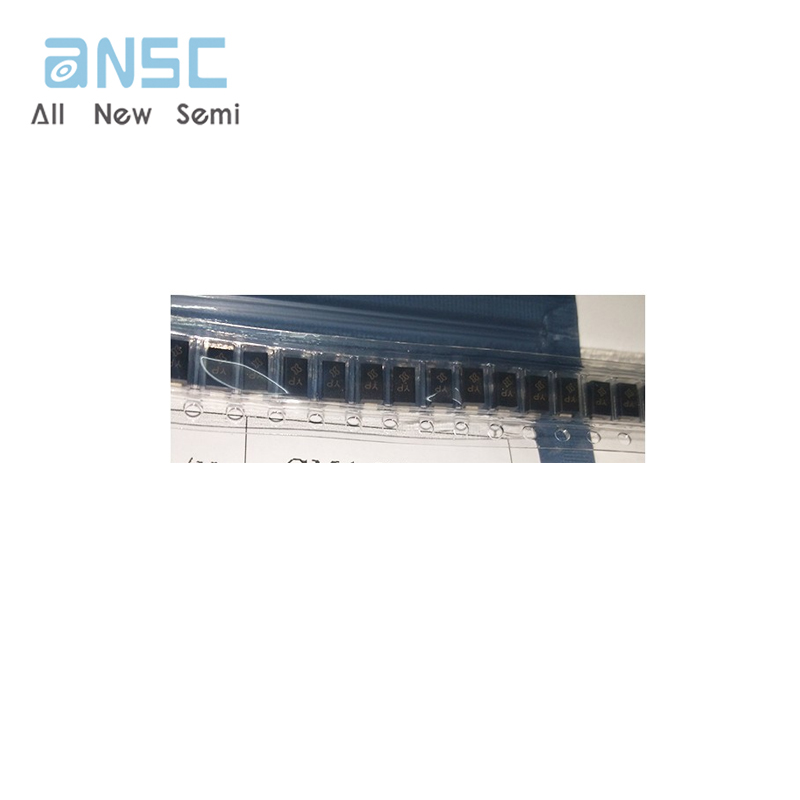

Actual image of the product

SMAJ36CA

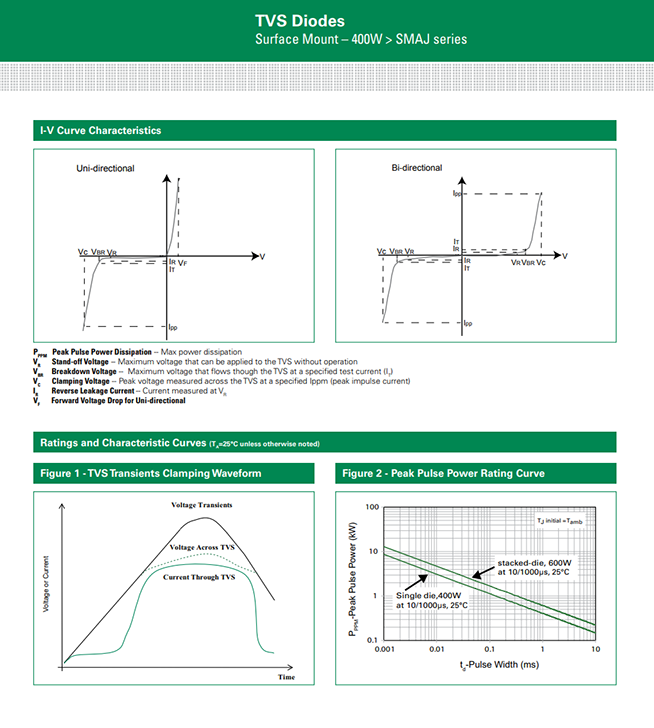

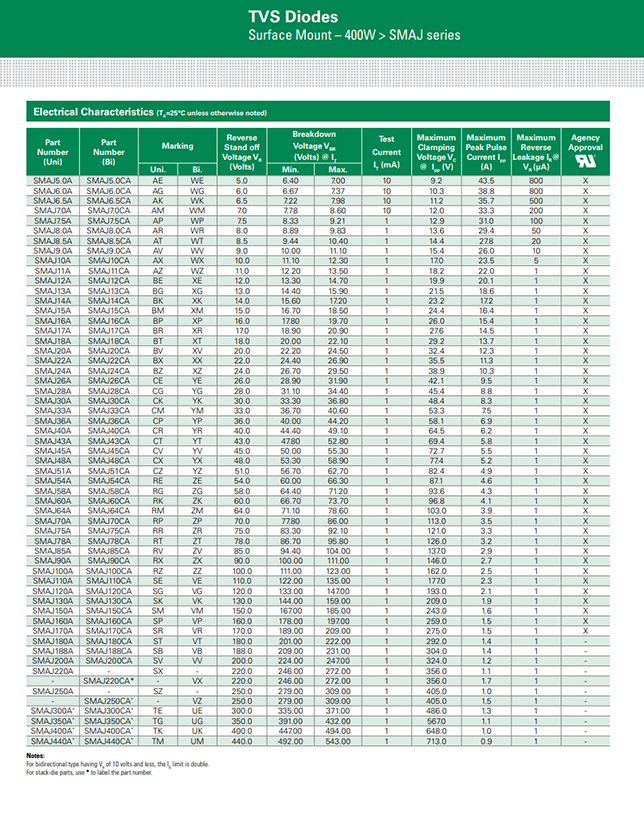

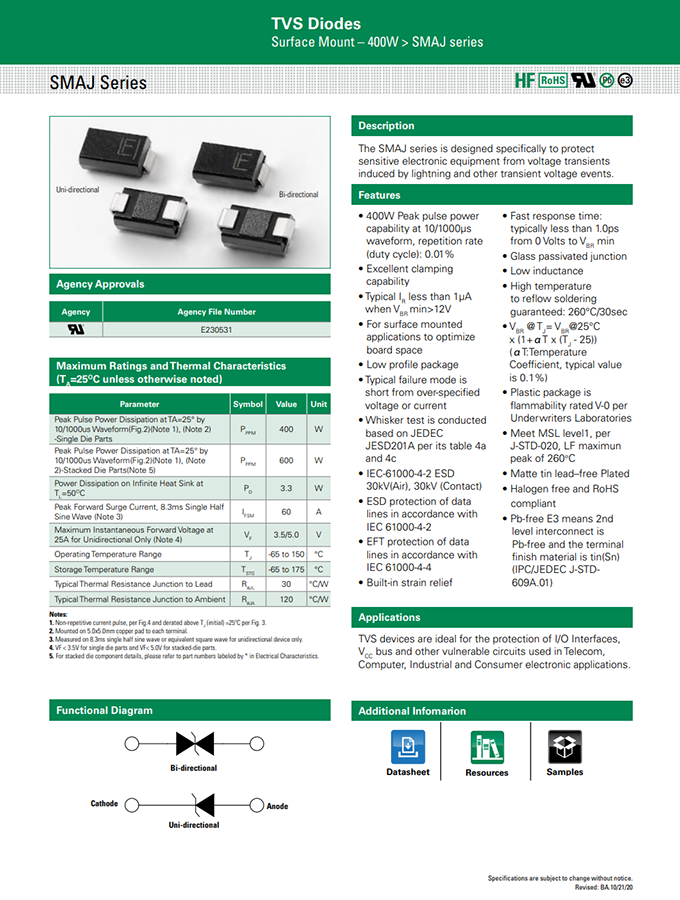

Product datasheet

For more information, please download
