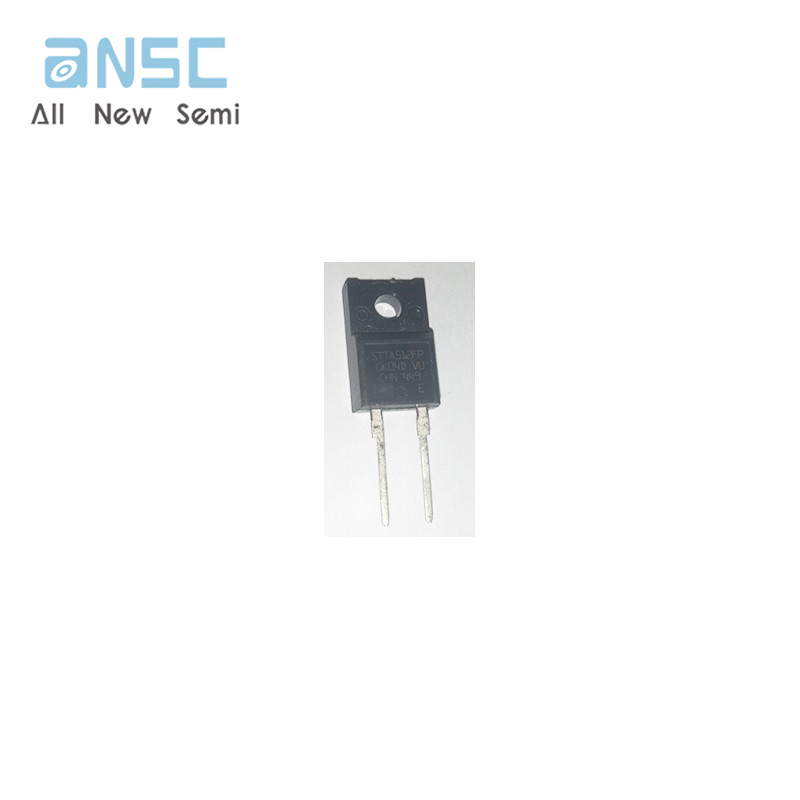

Hot sale original electronics STTA512FP DIODE GP 1.2KV 5A TO220FPAC Diode 1200 V 5A Through Hole TO-220FPAC
Manufacturer Product Number
STTA512FP
Description
STTA512FP DIODE GP 1.2KV 5A TO220FPAC Diode 1200 V 5A Through Hole TO-220FPAC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes. Due to their optimized switching performances they also highly decrease power losses in any associated switching IGBT or MOSFET in all “freewheel mode” operations. FEATURES AND BENEFITS ■ SPECIFIC TO THE FOLLOWING OPERATIONS: SNUBBING OR CLAMPING, DEMAGNETIZATION AND RECTIFICATION ■ ULTRA-FAST, SOFT RECOVERY. ■ VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. ■ HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION. ■ HIGH REVERSE VOLTAGE CAPABILITY ■ INSULATED PACKAGES: ISOWATT220AC, TO-220FPAC ■ Electrical insulation : 2000V DC Capacitance : 12pF. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-STTA512FP |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | TURBOSWITCH™ |
| Packaging | Tube |
| Part Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 95 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220FPAC |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | STTA512 |
