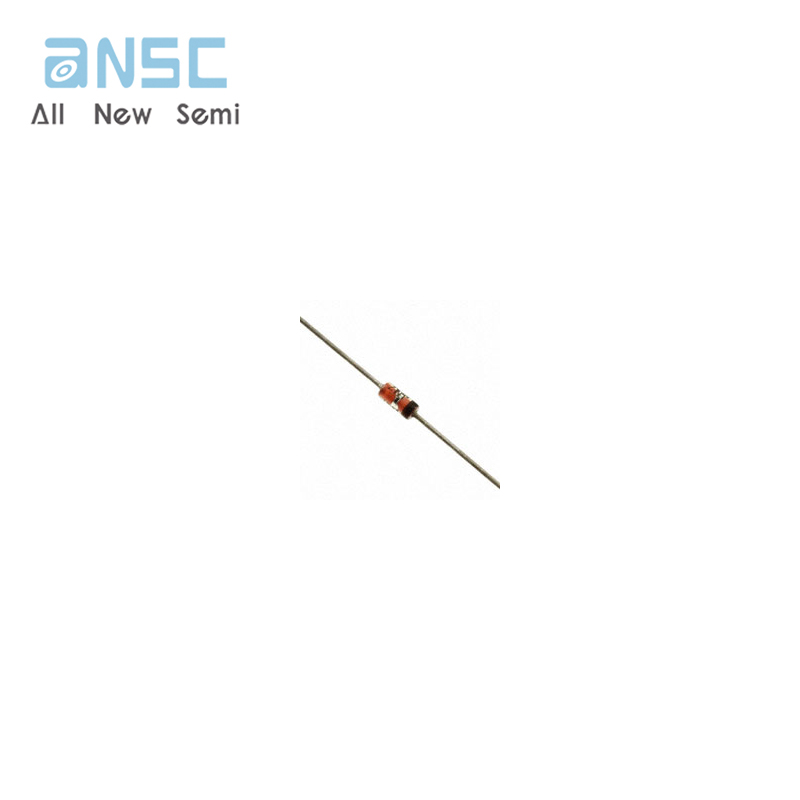

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original 1N5639A TVS DIODE 15.3VWM 25.2VC DO13 25.2V Clamp 59.5A Ipp Tvs Diode Through Hole DO-13
Manufacturer Product Number
1N5639A
Description
1N5639A TVS DIODE 15.3VWM 25.2VC DO13
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
FEATURES
• Hermetically sealed
• Breakdown voltage range 6.8 - 200 volts
• Glass passivated junction
• Excellent clamping capability
• Low zener impedance
• 100% surge tested
• -55°C to +150°C
• Uni-polar
Product Description
|
Type |
Description |
|---|---|
|
Category |
Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Type |
Zener |
|
Unidirectional Channels |
1 |
|
Voltage - Reverse Standoff (Typ) |
15.3V |
|
Voltage - Breakdown (Min) |
17.1V |
|
Voltage - Clamping (Max) @ Ipp |
25.2V |
|
Current - Peak Pulse (10/1000µs) |
59.5A |
|
Power - Peak Pulse |
1500W (1.5kW) |
|
Power Line Protection |
No |
|
Applications |
General Purpose |
|
Capacitance @ Frequency |
- |
|
Operating Temperature |
-65°C ~ 175°C (TJ) |
|
Mounting Type |
Through Hole |
|
Package / Case |
DO-13 |
|
Supplier Device Package |
DO-13 |
|
Base Product Number |
1N5639 |
