Hot-selling and scarce MAX3243ECAI 250kbps RS-232 Transceivers with AutoShutdown SSOP28 spot stock

Product Descriptions

The MAX3221E/MAX3223E/MAX3243E are 3V-poweredEIA/TIA-232 and V .28/V .24 communications interfaceswith automatic shutdown/wakeup features, high datarate capabilities, and enhanced electrostatic discharge(ESD) protection . All transmitter outputs and receiverinputs are protected to ±15kV using IEC 1000-4-2 AirGap Discharge, to ±8kV using IEC 1000-4-2 ContactDischarge, and to ±15kV using the Human Body Model .

The  MAX3221E/MAX3223E/MAX3243E  achieve  a1µA   supply   current  with   feature . They save power withoutchanges to the existing BIOS or operating system by entering low-power shutdown mode when the RS-232 cable isdisconnected, or when the transmitters of the connectedperipherals are off .

The transceivers have a proprietary low-dropout transmitter output stage, delivering true RS-232 performancefrom a +3 .0V to +5 .5V supply with a dual charge pump .The charge pump requires only four small 0.1µF capacitors for operation from a +3 .3V supply . Each device isguaranteed to run at data rates of 250kbps while maintaining RS-232 output levels .

The MAX3221E contains just one driver and one receiver,making it the smallest single-supply RS-232 transceiver .The MAX3223E has two drivers and two receivers . TheMAX3243E is a complete 3-driver/5-receiver serial portideal for notebook or subnotebook computers . It alsoincludes two noninverting receiver outputs that are alwaysactive, allowing external devices to be monitored withoutforward biasing the protection diodes in circuitry that maybe powered down .

Product Features

♦ For Space-Constrained Applications:

MAX3228E/MAX3229E:±15kV ESD-Protected,+2.5V

to +5 .5V RS-232 Transceivers in UCSP™

MAX3222E/MAX3232E/MAX3237E/MAX3241E/

MAX3246E: ±15kV ESD-Protected Down to 10nA,

+3.0V to +5.5V, Up to 1Mbps, True RS-232

Transceivers (MAX3246E Available in a UCSP Package)

♦ For Data Cable Applications:

MAX3380E/MAX3381E: +2.35V to +5.5V, 1µA,

2Tx/2Rx RS-232 Transceivers with ±15kV ESD-

Protected I/O and Logic Pins

Product Applications

Notebook, Subnotebook, and Palmtop Computers

Cellular Phones

Battery-Powered Equipment

Handheld Equipment

Peripherals

Printers

Product Specification

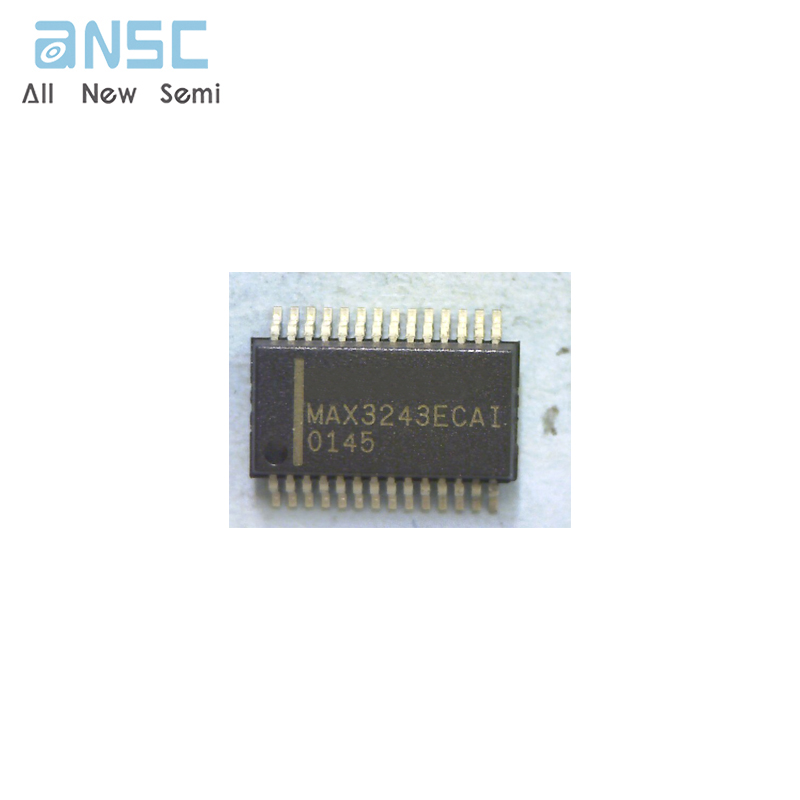

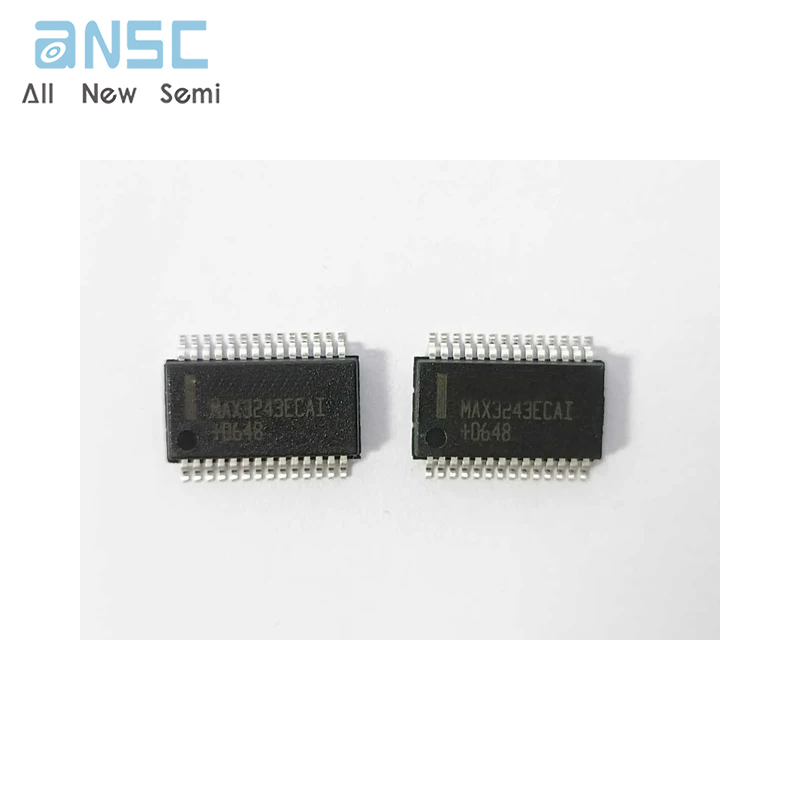

Product Photos

For more product information, please download the PDF
