Hot-selling and scarce 88E1512-A0-NNP2I000 Energy Efficient Ethernet Transceiver QFN56 spot stock
Manufacturer Product Number
88E1512-A0-NNP2I000
Description
88E1512-A0-NNP2I000 Energy Efficient Ethernet Transceiver QFN56 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
10/100/1000BASE-T IEEE 802.3 compliant
Multiple Operating Modes
• RGMII to Copper
• SGMII to Copper (88E1512/88E1514 device only)
• RGMII to Fiber/SGMII (88E1512 device only)
• RGMII to Copper/Fiber/SGMII with Auto-Media Detect (88E1512 device only)
• Copper to Fiber (1000BASE-X) (88E1512/88E1514)
Four RGMII timing modes including integrated delays - This eliminates the need for adding trace delays on the PCB
Supports 1000BASE-X and 100BASE-FX on the Fiber interface along with SGMII (88E1512 device only)
Supports LVCMOS I/O Standards on the RGMII
Supports Energy Efficient Ethernet (EEE) - IEEE 802.3az-2010 compliant
• EEE Buffering
• Incorporates EEE buffering for seamless support of legacy MACs
Ultra Low Power
Integrated MDI termination resistors that eliminate passive components
Integrated Switching Voltage Regulators
Supports Green Ethernet
• Active Power Save Mode
• Energy Detect and Energy Detect+ low power modes
IEEE1588 version 2 Time Stamping
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-88E1512-A0-NNP2I000 |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | Alaska® |
| Packaging | Tray |
| Part Status | Active |
| Type | Transceiver |
| Protocol | IEEE 802.3, IEEE 1588 |
| Number of Drivers/Receivers | 46116 |
| Duplex | Full, Half |
| Data Rate | 10Mbps, 100Mbps, 1Gbps |
| Voltage - Supply | 1.71V ~ 1.89V, 2.38V ~ 2.62V, 3.14V ~ 3.46V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (8x8) |

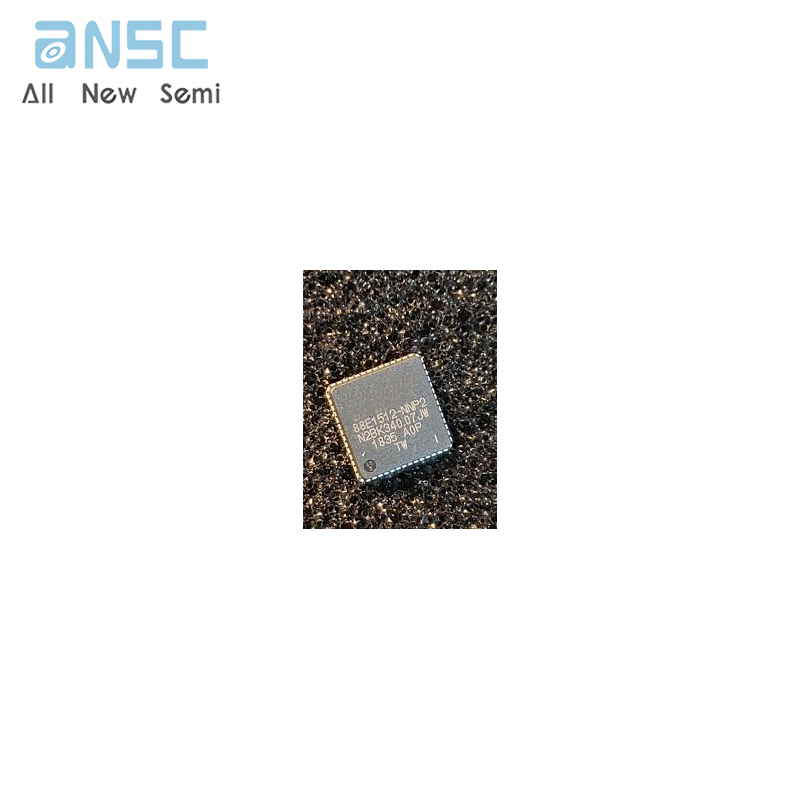

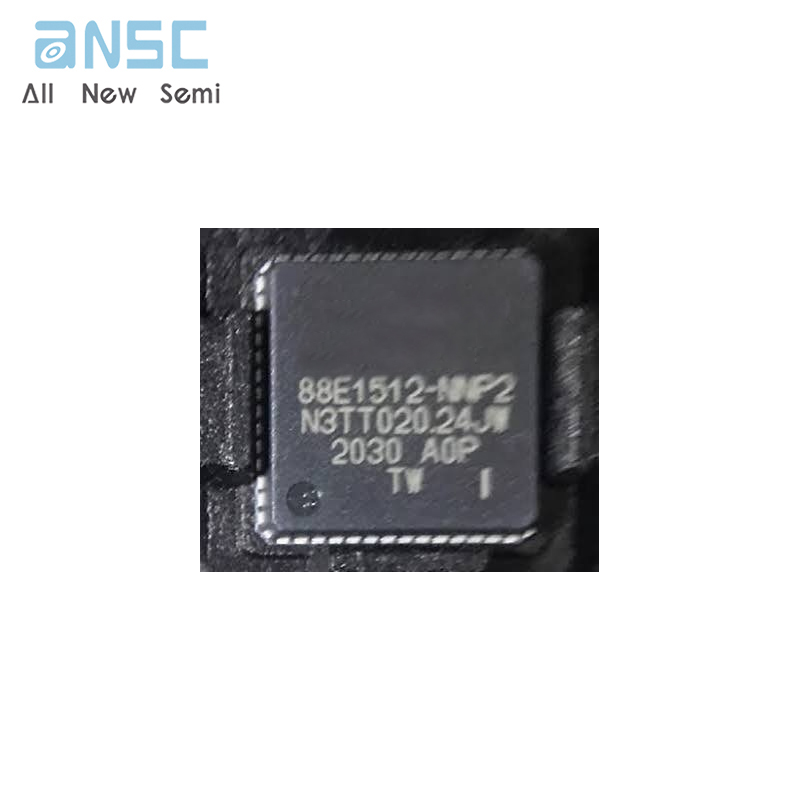

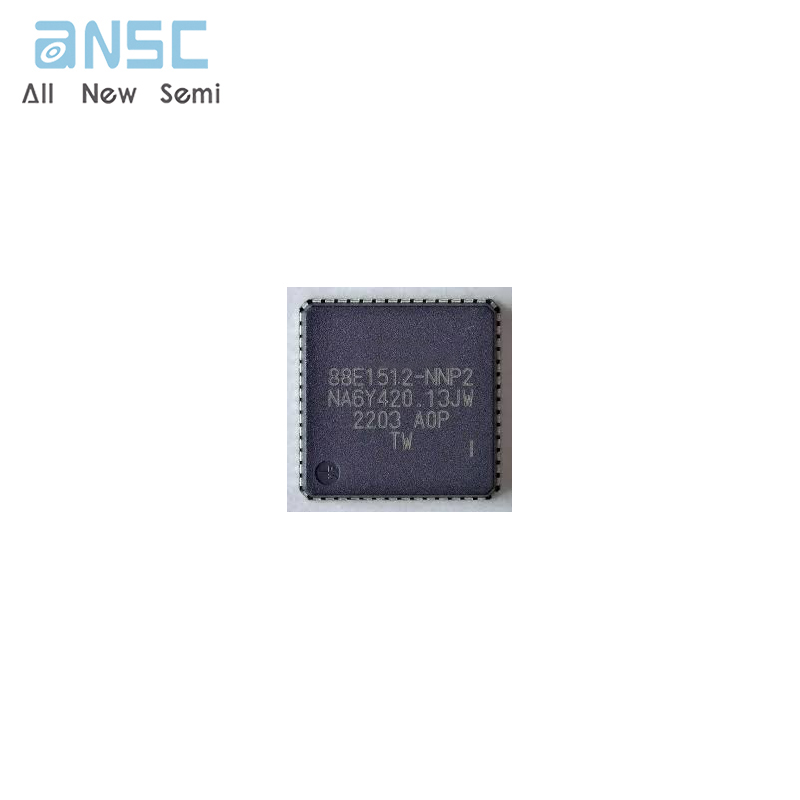

Product Photos
For more product information, please download the PDF
