Hot-selling and scarce XC17S200AVOG8C OTP Configuration PROM for FPGAs 2Mb 8-TSOP spot stock

Product Descriptions

The XC17S00A family of PROMs provide an easy-to-use,  cost-effective method for storing Spartan-II/Spartan-IIE  device configuration bitstreams.

When the Spartan device is in Master Serial mode, it  generates a configuration clock that drives the Spartan  PROM. A short access time after the rising clock edge, data  appears on the PROM DATA output pin that is connected to  the Spartan device DIN pin. The Spartan device generates  the appropriate number of clock pulses to complete the  configuration. Once configured, it disables the PROM.  When a Spartan device is in Slave Serial mode, the PROM  and the Spartan device must both be clocked by an  incoming signal.

For device programming, either the Xilinx Alliance or the  Spartan device design file into a standard HEX format which  is then transferred to most commercial PROM programmers.

Product Features

 Configuration one-time programmable (OTP) read-only memory designed to store configuration bitstreams for Spartan™-II/Spartan-IIE FPGA devices

 Simple interface to the Spartan device

 Programmable reset polarity (active High or active Low)

 Low-power CMOS floating gate process

 3.3V PROM

 Available in compact plastic 8-pin DIP, 8-pin VOIC, 20-pin SOIC, or 44-pin VQFP packages

 Programming support by leading programmer manufacturers

 Design support using the Xilinx Alliance and Foundation™ series software packages

 Guaranteed 20-year life data retention

 Pb-free (RoHS-compliant) packaging available

Product Specification

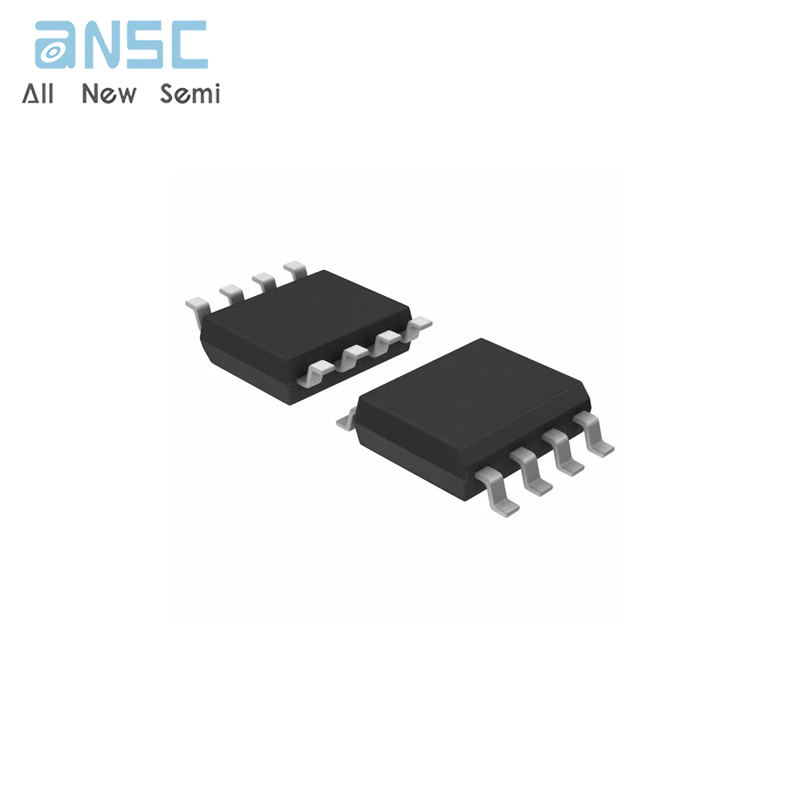

Product Photos

For more product information, please download the PDF
