Hot-selling and scarce UPD70208HLP-16 16/8, 16-BIT MICROPROCESSOR IC PLCC68 spot stock

Product Descriptions

The µPD70208H (V40HL) is a high-speed, low-power 16-/8-bit microprocessor based on the µPD70208 (V40TM) with 16-bit architecture, 8-bit data bus, and general-purpose peripheral functions.

The µPD70216H (V50HL) is a high-speed, low-power 16-bit microprocessor based on the µPD70216 (V50TM) with 16- bit architecture, 16-bit data bus, and general-purpose peripheral functions.

The V40HL and V50HL offer 20 MHz operation, and in addition to the conventional standby functions, also allows the clock to be stopped by the use of fully static internal circuitry, thus achieving greatly reduced power consumption. It is also capable of 3 V operation in addition to the previous 5 V operation, making it ideally suited to battery driven systems.

Product Features

• High-speed, low-power version of V40 and V50

• High-performance CPU (V20TM/V30TM software compatible)

• Minimum instruction execution time: 100 ns (20 MHz, 5 V) 200 ns (10 MHz, 3 V)

• Memory addressing space: 1M bytes

• High-speed multiply/divide instructions: 0.95 to 2.8 µs (20 MHz, 5 V) 1.9 to 5.6 µs (10 MHz, 3 V)

• Maskable (ICU) & non-maskable (NMI) interrupt inputs

• µPD8080AF emulation function

• Standby functions, clock stoppage capability

• Standard peripheral LSI functions on chip

• Clock generator (CG)

• Programmable wait control unit (WCU)

• Refresh control unit (REFU)

• Timer/counter unit (TCU) ··· µPD71054 subset

• Serial control unit (SCU) ··· µPD71051 subset

• Interrupt control unit (ICU) ··· µPD71059 subset

• DMA control unit (DMAU) ··· µPD71071/71037 subset (functions of either selectable)

• Operating frequency:

10/12.5/16/20 MHz (at 5 V, with 20/25/32/40 MHz supplied externally)

5/6.25/8/10 MHz (at 3 V, with 10/12.5/16/20 MHz supplied externally

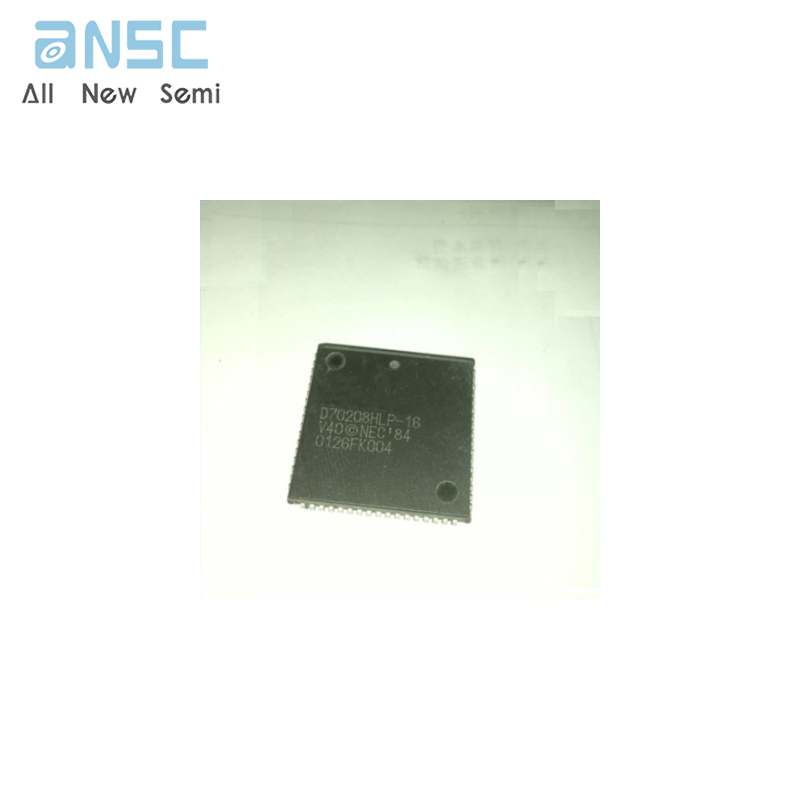

Product Photos

For more product information, please download the PDF
