Hot-selling and scarce MP1583DN-LF-Z 3A, 23V, 385KHz Step-Down Converter SOP8
Manufacturer Product Number
MP1583DN-LF-Z
Description
MP1583DN-LF-Z 3A, 23V, 385KHz Step-Down Converter SOP8
Package Condition
Tape & Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP1583 is a step-down regulator with a built-in internal Power MOSFET. It achieves 3A of continuous output current over a wide input supply range with excellent load and line regulation.
Current mode operation provides fast transient response and eases loop stabilization.
Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. An adjustable soft-start reduces the stress on the input source at startup. In shutdown mode the regulator draws 20μA of supply current.
The MP1583 requires a minimum number of external components, providing a compact solution.
Product Features
• 3A Output Current
• Programmable Soft-Start
• 100mΩ Internal Power MOSFET Switch
• Stable with Low ESR Output Ceramic Capacitors
• Up to 95 PERCENT Efficiency
• 20μA Shutdown Mode
• Fixed 385KHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Wide 4.75V to 23V Operating Input Range
• Output Adjustable from 1.22V to 21V
• Under-Voltage Lockout
Product Applications
• Distributed Power Systems
• Battery Chargers
• Pre-Regulator for Linear Regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP1583DN-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 21V |
| Current - Output | 3A |
| Frequency - Switching | 385kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOICE |
| Base Product Number | MP1583 |

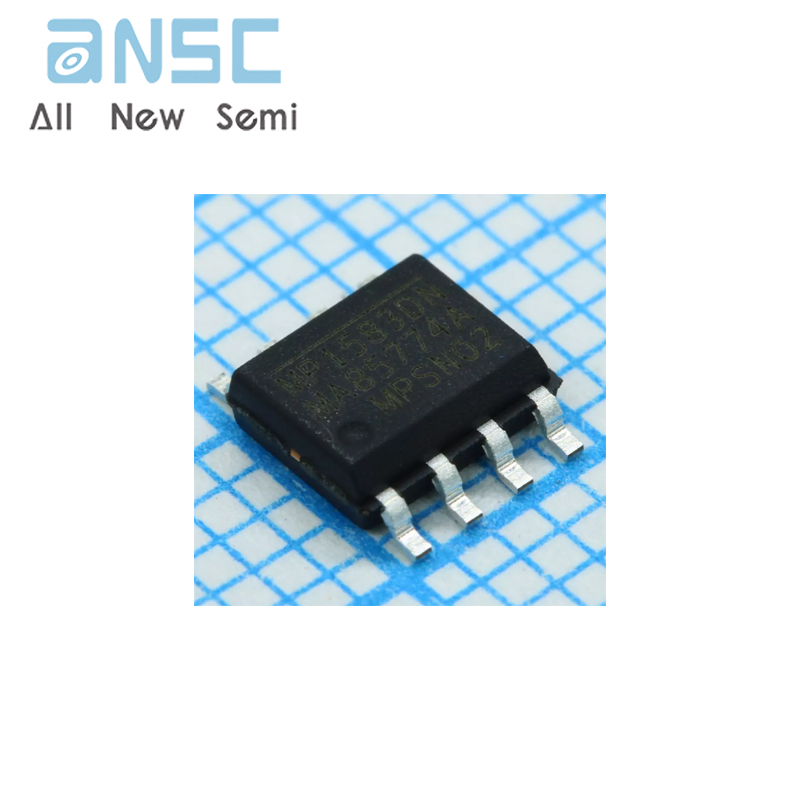

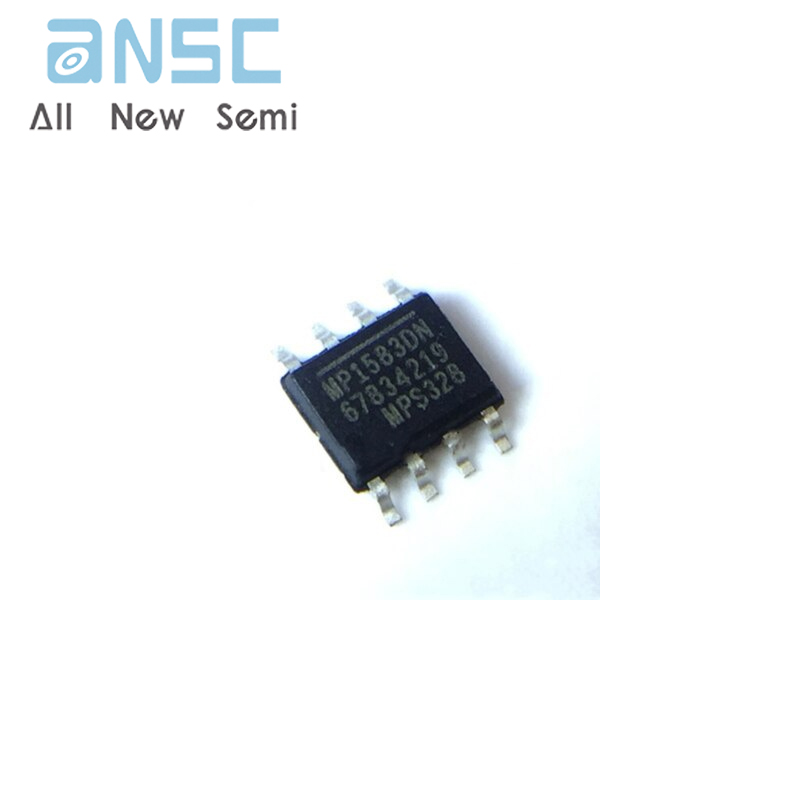

Product Photos
For more product information, please download the PDF
Other Products In The same category:
MP1583DN-LF-Z 3A, 23V, 385KHz Step-Down Converter SOP8
