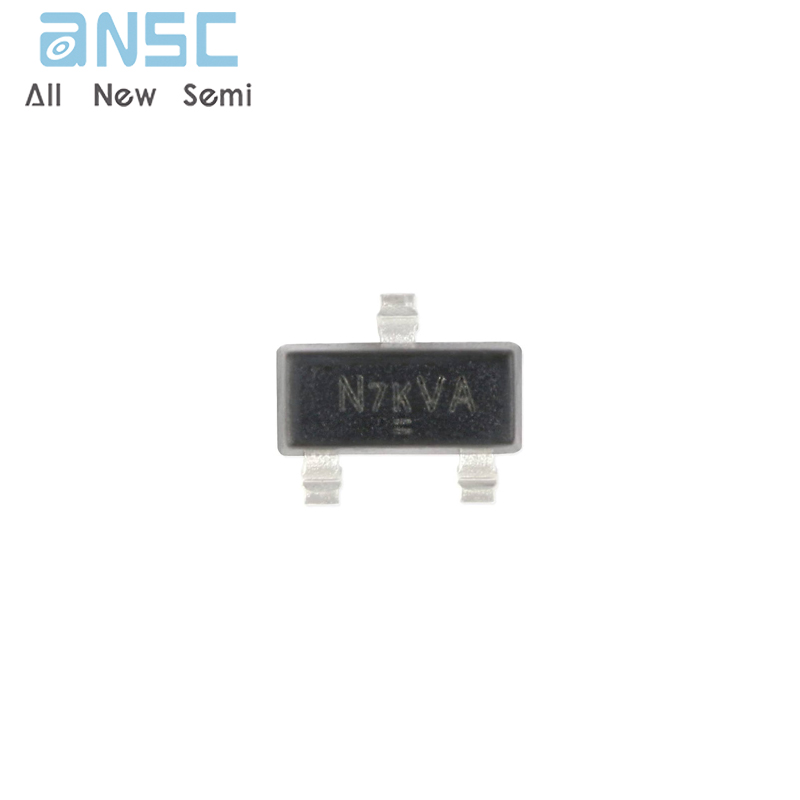

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SI2307CDS-T1-GE3 P-Channel 30-V (D-S) MOSFET SOT23 spot stock
Manufacturer Product Number
SI2307CDS-T1-GE3
Description
SI2307CDS-T1-GE3 P-Channel 30-V (D-S) MOSFET SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Halogen-free Option Available
• TrenchFET® Power MOSFET
Product Applications
• Load Switch for Portable Devices
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SI2307CDS-T1-GE3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id)@ 25°C | 3.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 88mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 340 pF @ 15 V |
| Power Dissipation (Max) | 1.1W (Ta), 1.8W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | SI2307 |
Product Photos
For more product information, please download the PDF
