Product Descriptions

The CENTAUR KS8695X, Multi-Port Gateway-on-a-Chip, delivers a new level of networking integration and performance for accelerating broadband gateway development. Key components integrated in the KS8695X include:

•  Integrated Layer 2 managed switch with five Fast Ethernet transceivers and patented mixed-signal lowpower technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address look-up engine, an on-chip frame buffer memory, and LED controls. One port is partitioned for WAN interface with the other four ports for LAN access.

•  A 166MHz ARM™ (ARM992T) processor with memory management unit (MMU) and 8KB I-cache and 8KB Dcache.

•  XceleRouter™technology for the WAN and LAN interfaces.

•  Shared programmable 8/16/32-bit data bus and 22-bit address bus with up to 64MB total memory space for SDRAM, ROM, Flash, SRAM, and all peripheral devices.

•  Other peripheral support logic including GPIO, a watchdog timer, an interrupt controller, and a JTAG debugging interface.

Product Features

•  The CENTAUR KS8695X featuring XceleRouter tech nology is a single-chip multi-port gateway-on-a-chip with all the key components integrated for a high-perfor mance and low-cost broadband gateway

•  ARM922T High-Performance CPU Core

– ARM922T core at 166MHz

– 8KB I-cache and 8KB D-cache

– Memory management unit (MMU) for linux and WinCE®

– 32-bit ARM and 16-bit thumb instruction sets for smaller memory footprints

•  XceleRouter Technology

– TCP/UDP/IP packet header checksum generation to offload CPU tasks

– IPv4 packet filtering on checksum errors

– Automatic error packet discard

•  Integrated Switch Engine and Transceivers

– Five 10/100 transceivers and five MACs (1P for WAN interface, 4P for LAN switching)

– 10BASE-T, 100BASE-TX, and 100BASE-FX modes (FX on the WAN port)

– On-chip SRAM as frame buffer memory

– Wire-speed switching

– VLAN ID and 802.1p tag/untag options

– Extensive MIB counter management support

– IGMP snooping for multicast packet filtering

– Port-based VLAN

– QoS/CoS packet prioritization support:  per port,802.1p and DiffServ-based

– 802.1D Spanning Tree Protocol support

– Dedicated 1K entry look-up engine

– Automatic MDI/MDI-X crossover on all ports

– Port mirroring/monitoring/sniffing

– Broadcast storm protection with % control

– Full- and half-duplex flow control

•  Memory and External I/O Interfaces

– 8/16/32-bit wide shared data path for SDRAM,ROM/SRAM/Flash and external I/O

– Total memory space up to 64MB

– Intel®/AMD®-type Flash support

Product Specifications

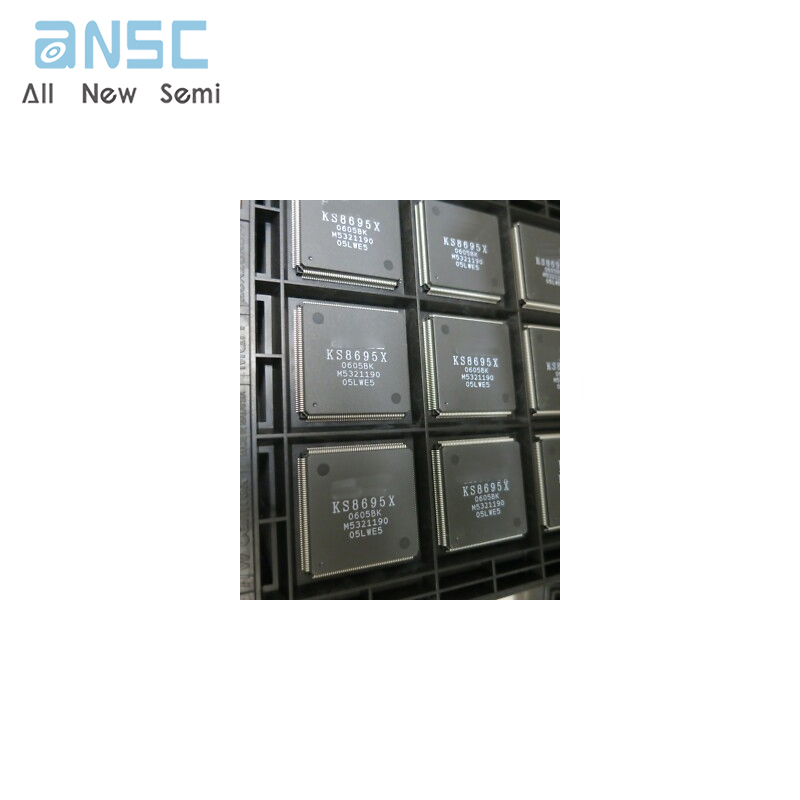

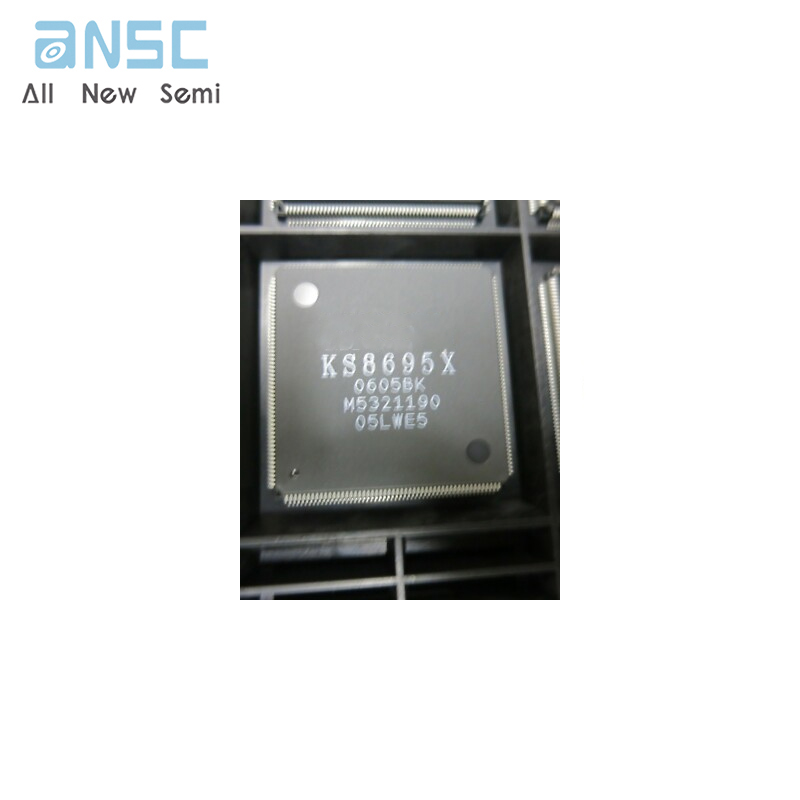

Product Photos

For more product information, please download the PDF
