Hot-selling and scarce DM9620IEP USB2.0 to 10/100M Fast Ethernet Controller IC QFP64 spot stock

Product Descriptions

The DM9620/DM9620I USB to 10/100Mbps Fast Ethernet controller is a industrial-temperature (DM9620I only)high performance and highly integrated ASIC with embedded SSRAM for packet buffering.It enables low cost and affordable Fast Ethernet network connection to desktop,notebook PC,and embedded system using popular USB ports.

It has an USB interface to communicate with USB host controller and is compliant with USB specification V1 .0,V1 .1 and V2 .0.It implements 10/100Mbps Ethernet LAN function based on IEEE802 .3,and IEEE802 .3u standards.

DM9620/DM9620I integrates an on-chip 10/100Mbps Ethernet PHY to simplify system design and provides an optional media-independent interface (MII/Reverse MII/RMII).

Product Features

USB Interface

USB2 .0 Device

Supports 12Mbps Full-Speed operation

Supports 480Mbps High-Speed operation

Supports suspend mode and remote wake-up Resume

Supports USB standard commands

Supports vendor specific commands

Efficient TX/RX FIFO auto management.

Supports 4 endpoints (Control,Interrupt,Bulk_IN,Bulk_OUT)

Supported Classes：USB Common Class /USB Communications Class –

Ethernet

Support IEEE802 .3u 100BASE-TX and with IEEE802 .3 10BASE-T standards

Support IEEE802 .3x flow control function for 100BASE-TX and 10BASET.

Built-in 10/100Mbps Fast-Ethernet PHY with Auto-MDIX

Supports MII,RMII and Reverse MII interface or 16 pins GPIO

Support Auto-negotiation function

Back Pressure Mode for half-duplex mode flow Control

PAUSE frame for full-duplex flow control

Supports GPIO,wakeup frame,link status change and Magic packet events for remote wake-up

Support TCP /UDP /IP v4 checksum offload checking and generating

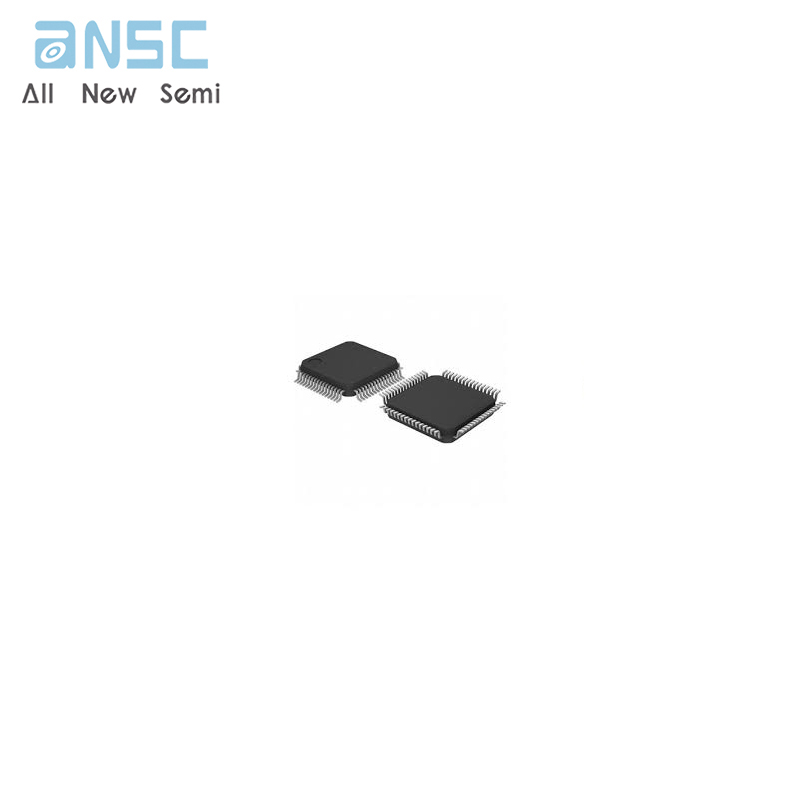

Product Photos

For more product information, please download the PDF
