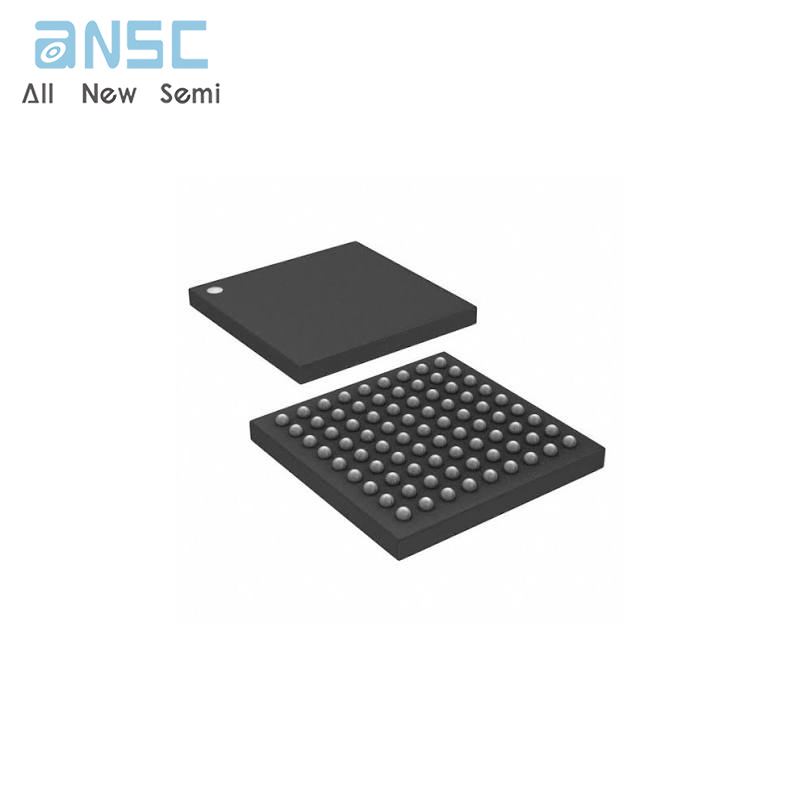

Hot-selling and scarce AGLN250V5-CSG81 Field Programmable Gate Array IC BGA spot stock

Product Features

• Low Power

- nanoPower Consumption—Industry’s Lowest Power

- 1.2V to 1.5V Core Voltage Support for Low Power

- Supports Single-Voltage System Operation

- Low Power Active FPGA Operation

- Flash*Freeze Technology Enables Ultra-Low Power

Consumption while Maintaining FPGA Content

- Easy Entry to/exit from Ultra-Low Power Flash*Freeze Mode

• Small Footprint Packages

- As Small as 3 x 3 mm in Size

•Wide Range of Features

- 10,000 to 250,000 System Gates

- Up to 36 kbits of True Dual-Port SRAM

- Up to 71 User I/Os

• Reprogrammable Flash Technology

- 130-nm,7-Layer Metal,Flash-Based CMOS Process

- Instant On Level 0 Support

- Single-Chip Solution

- Retains Programmed Design When Powered Off

- 250 MHz (1 .5V systems)and 160 MHz (1 .2V systems)System Performance

• In-System Programming (ISP)and Security

- ISP Using On-Chip 128-Bit Advanced Encryption Standard (AES)Decryption through JTAG (IEEE®1532– compliant)

- FlashLock®Designed to Secure FPGA Contents

- 1.2V Programming

• High-Performance Routing Hierarchy

- Segmented,Hierarchical Routing and Clock Structure

•Advanced I/Os

- 1.2V,1.5V,1.8V,2.5V,and 3.3V Mixed-Voltage Operation

- Bank-Selectable I/O Voltages—up to 4 Banks per Chip

- Single-Ended I/O Standards:LVTTL,LVCMOS 3.3V/2.5V/1.8V/1.5V/1.2V

•Wide Range Power Supply Voltage Support per JESD8-B,Allowing I/Os to Operate from 2.7V to 3.6V

•Wide Range Power Supply Voltage Support per JESD8-12,Allowing I/Os to Operate from 1.14V to 1.575V

• I/O Registers on Input,Output,and Enable Paths

• Selectable Schmitt Trigger Inputs

• Hot-Swappable and Cold-Sparing I/Os

• Programmable Output Slew Rate and Drive Strength

•Weak Pull-Up/-Down

• IEEE 1149 .1 (JTAG)Boundary Scan Test

• Pin-Compatible Packages across the IGLOO Family

Product Specification

Product Photos

​

For more product information, please download the PDF
