Hot-selling and scarce STM8S105RBT6 Integrated EEPROM IC QFP spot stock

Product Features

Core

•16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

•Extended instruction set

Memories

•Medium-density Flash/EEPROM:

-Program memory up to 32 Kbytes;data retention 20 years at 55°C after 10 kcycles

-Data memory up to 1 Kbytes true data EEPROM;endurance 300 kcycles

•RAM:Up to 2 Kbytes

Clock,reset and supply management

•2.95 V to 5.5 V operating voltage

•Flexible clock control,4 master clock sources:

-Low power crystal resonator oscillator

-External clock input

-Internal,user-trimmable 16 MHz RC

-Internal low power 128 kHz RC

•Clock security system with clock monitor

•Power management:

-Low power modes (wait,active-halt,halt)

-Switch-off peripheral clocks individually

•Permanently active,low consumption power-on and power-down reset

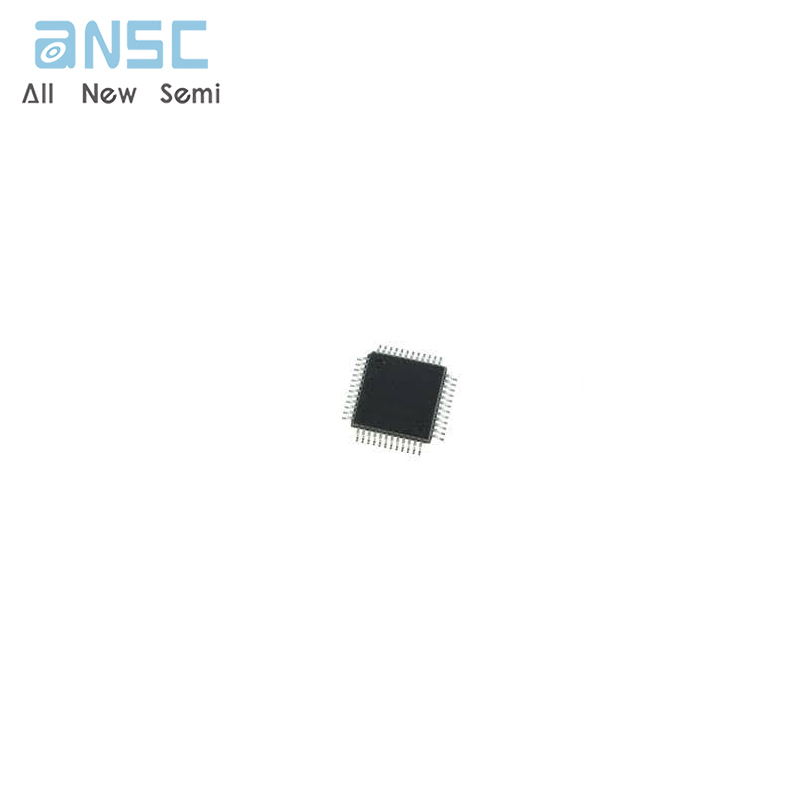

Product Photos

​

For more product information, please download the PDF
