Hot-selling and scarce 74HC02 Quad 2-input NOR gate SOP14 spot stock

Product Descriptions

The 74HC02 is identical in pinout to the LS02 .The device inputs arecompatible with standard CMOS outputs; with pullup resistors, theyare compatible with LSTTL outputs .

Product Features

•Output Drive Capability: 10 LSTTL Loads

•Outputs Directly Interface to CMOS,NMOS, and TTL

•Operating Voltage Range:2.0 to 6.0 V

•Low Input Current: 1.0 A

•High Noise Immunity Characteristic of CMOS Devices

•In Compliance with the Requirements Defined by JEDEC Standard No .7A

•ESD Performance:HBM   2000 V;Machine Model   200 V

•Chip Complexity:40 FETs or 10 Equivalent Gates

•These are Pb−Free Devices

​

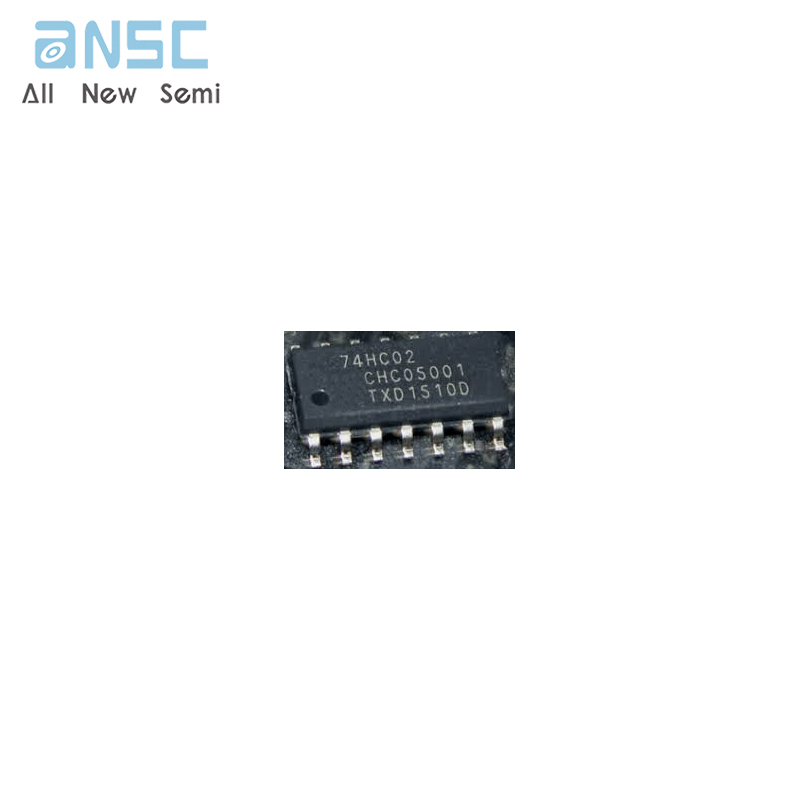

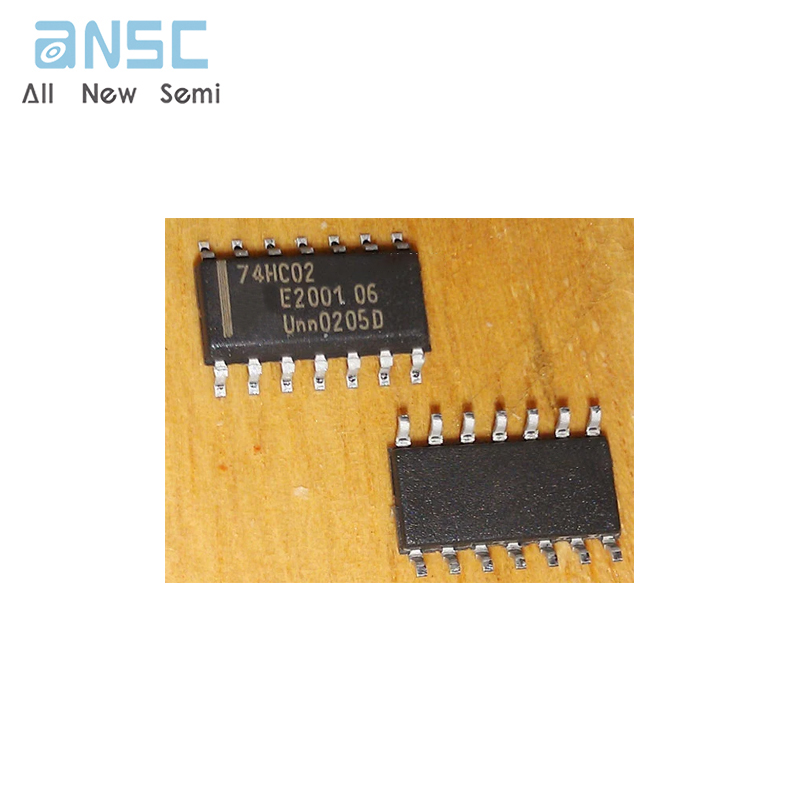

Product Photos

For more product information, please download the PDF
