Hot-selling and scarce ADV7123JSTZ330 CMOS, 330 MHz Triple 10-Bit High Speed Video DAC LQFP-48 spot stock

Product Descriptions

The ADV7123 (ADV®) is a triple high speed, digital-to-analogconverter on a single monolithic chip. It consists of three highspeed, 10-bit,video DACs with complementary outputs, astandard TTL input interface, and a high impedance, analogoutput current source .

The ADV7123 has three separate 10-bit-wide input ports . Asingle 5 V/3.3 V power supply and clock are all that are requiredto make the part functional . The ADV7123 has additional videocontrol signals, composite SYNC and BLANK .

The ADV7123 also has a power save mode .

The ADV7123 is fabricated in a 5 V CMOS process . Itsmonolithic CMOS construction ensures greater functionalitywith lower power dissipation . The ADV7123 is available in a48-lead LQFP package .

Product Features

330 MSPS throughput rate

Triple 10-bit digital-to-analog converters (DACs)

SFDR

−70 dB at fCLK = 50 MHz; fOUT = 1 MHz

−53 dB at fCLK = 140 MHz; fOUT = 40 MHz

RS-343A-/RS-170-compatible output

Complementary outputs

DAC output current range: 2.0 mA to 26.5 mA

TTL-compatible inputs

Internal reference (1.235 V)

Single-supply 5 V/3.3 V operation

48-lead LQFP package

Low power dissipation (30 mW minimum @ 3 V)

Low power standby mode (6 mW typical @ 3 V)

Industrial temperature range (−40°C to +85°C)

Pb-free (lead-free) package

Product Applications

Digital video systems (1600 × 1200 @ 100 Hz)

High resolution color graphics

Digital radio modulation

Image processing

Instrumentation

Video signal reconstruction

Product Specification

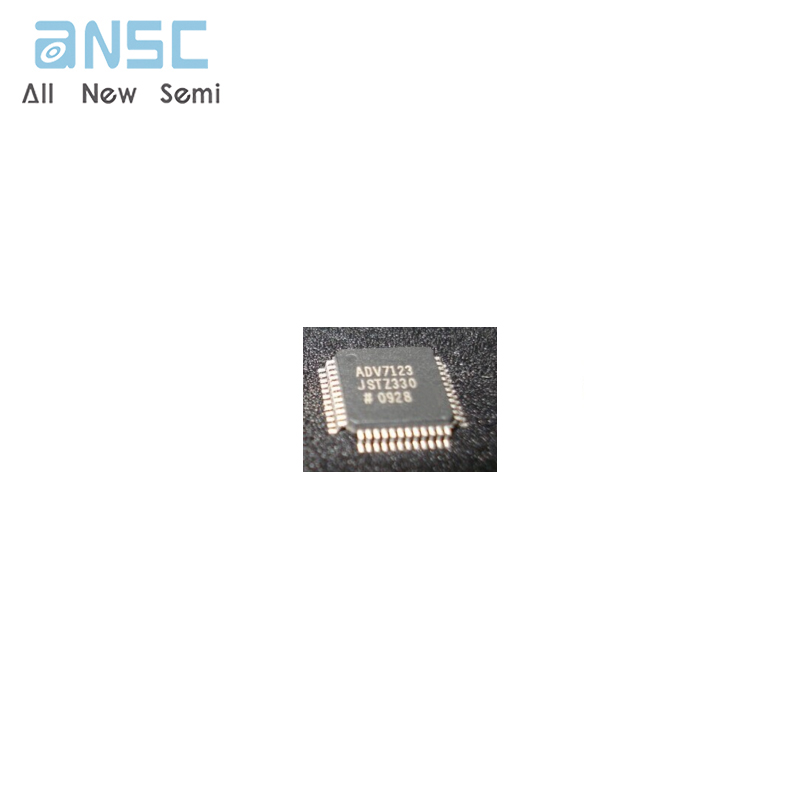

Product Photos
