Hot-selling and scarce ADG729BRU Low-Voltage, 2-Wire Serially-Controlled, Matrix Switches TSSOP16 spot stock

Product Descriptions

The ADG728 and ADG729 are CMOS analog matrix switcheswith a serially controlled 2-wire interface . The ADG728 is an8-channel matrix switch, while the ADG729 is a dual 4-channelmatrix switch . On resistance is closely matched between switchesand very flat over the full signal range . These parts can operateequally well as either multiplexers, demultiplexers or switcharrays and the input signal range extends to the supplies .

The ADG728 and ADG729 utilize a 2-wire serial interface thatis compatible with the I²C™ interface standard . Both have twoexternal address pins (A0 and A1). This allows the 2 LSBs ofthe 7-bit slave address to be set by the user . Four of each of thedevices can be connected to the one bus . The ADG728 also hasa RESET pin that should be tied high if not in use .

Each channel is controlled by one bit of an 8-bit word . Thismeans that these devices may be used in a number of differentconfigurations; all, any, or none of the channels may be on atany one time .

On power-up of the device, all switches will be in the OFF condition and the internal shift register will contain all zeros

All channels exhibit break-before-make switching action preventing momentary shorting when switching channels .

The ADG728 and ADG729 are available in 16-lead TSSOPpackages .​

Product Features

2-Wire Serial Interface

2.7 V to 5.5 V Single Supply

2.5  On Resistance

0.75  On-Resistance Flatness

100 pA Leakage Currents

Single 8-to-1 Matrix Switch ADG728

Dual 4-to-1 Matrix Switch ADG729

Power-On Reset

Small 16-Lead TSSOP Package

Product Applications

Data Acquisition Systems

Communication Systems

Relay Replacement

Audio and Video Switching

Automatic Test Equipment

Product Specification

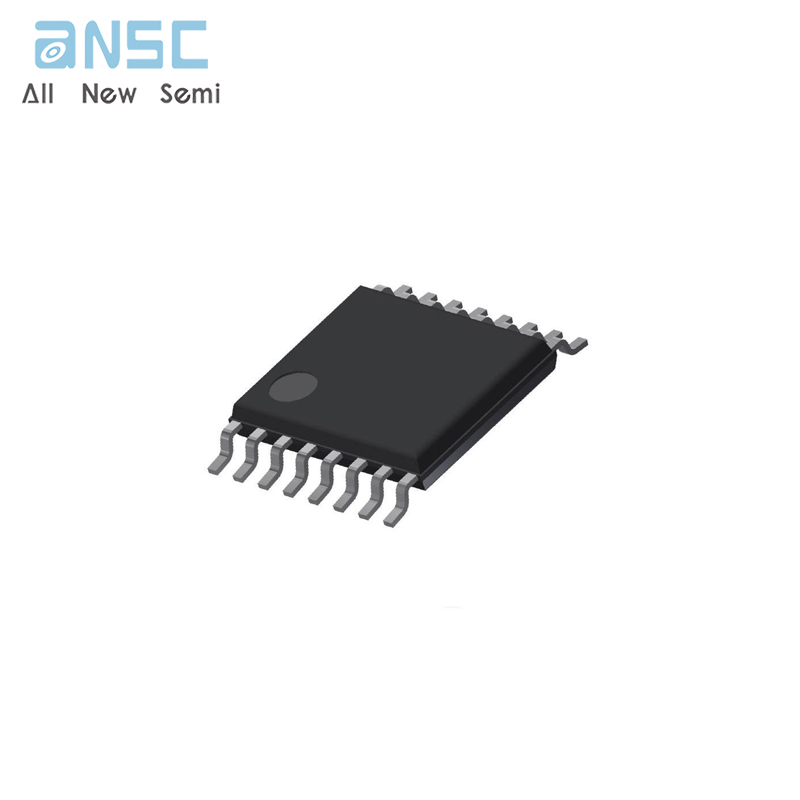

Product Photos

For more product information, please download the PDF
