Hot-selling and scarce MC74LV594ADR2G 8-Bit Shift Register SOP16 spot stock

Product Descriptions

The MC74LV594A is an 8−bit shift register designed for  2 V to 6.0 V VCC operation. The device contain an 8−bit serial−in, parallel−out shift register that feeds an 8−bit D−type storage register. Separate clocks (RCLK, SRCLK) and direct overriding clear (RCLR, SRCLR) inputs are provided on the shift and storage registers. A serial output (QH’) is provided for cascading purposes.

The shift−register (SRCLK) and storage−register (RCLK) clocks are positive−edge triggered. If the clocks are tied together, the shift register always is one clock pulse ahead of the storage register.

Product Features

• 2.0 V to 6.0 V VCC Operation

• Low Input Current: 1.0  A

• Max tpd of 6.5 ns at 5 V

• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed−Mode Voltage Operation on All Ports

• 8−Bit Serial−In, Parallel−Out Shift Registers With Storage

• Independent Direct Overriding Clears on Shift and Storage Registers

• Independent Clocks for Shift and Storage Registers

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance with the Requirements Defined by JEDEC Standard No. 7A

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Product Specification

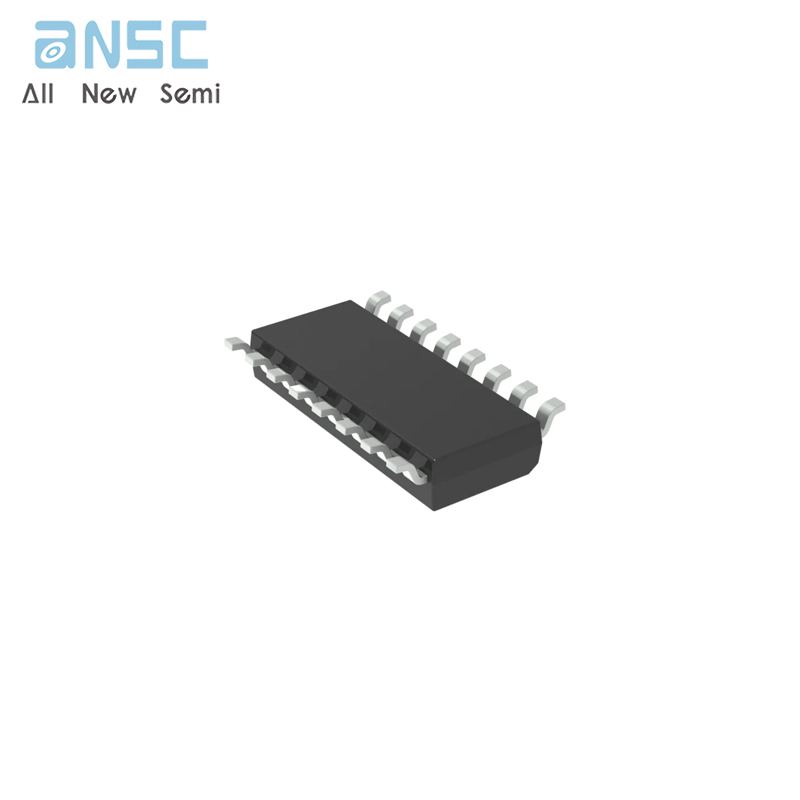

Product Photos

For more product information, please download the PDF
