Hot-selling and scarce ADF7020BCPZ High Performance, ISM Band, FSK/ASK Transceiver IC QFN48 spot stock

Product Descriptions

The ADF7020 is a low power, highly integrated FSK/ASK/OOKtransceiver designed for operation in the license -free ISM bandsat 433 MHz, 868 MHz, and 915 MHz, as well as the proposedJapanese RFID band at 950 MHz . A Gaussian data filter optionis available to allow either GFSK or G-ASK modulation, whichprovides a more spectrally efficient modulation . In addition tothese modulation options, the ADF7020 can also be used toperform both MSK and GMSK modulation, where MSK is aspecial case of FSK with a modulation index of 0.5.The modulation index is calculated as twice the deviation divided by thedata rate. MSK is spectrally equivalent to O-QPSK modulationwith half-sinusoidal Tx baseband shaping, so the ADF7020 canalso support this modulation option by setting up the device inMSK mode .

Product Features

Low power, low IF transceiver

Frequency bands

431 MHz to 478 MHz

862 MHz to 956 MHz

Data rates supported

0.15 kbps to 200 kbps, FSK

0.15 kbps to 64 kbps, ASK

2.3 V to 3.6 V power supply

Programmable output power

−16 dBm to +13 dBm in 0.3 dBm steps

Receiver sensitivity

−119 dBm at 1 kbps, FSK

−112 dBm at 9.6 kbps, FSK

−106.5 dBm at 9.6 kbps, ASK

Low power consumption

19 mA in receive mode

26.8 mA in transmit mode (10 dBm output)

−3 dBm IIP3 in high linearity mode

Product Applications

Low cost wireless data transfer

Remote control/security systems

Wireless metering

Keyless entry

Home automation

Process and building control

Wireless voice

​

Product Specification

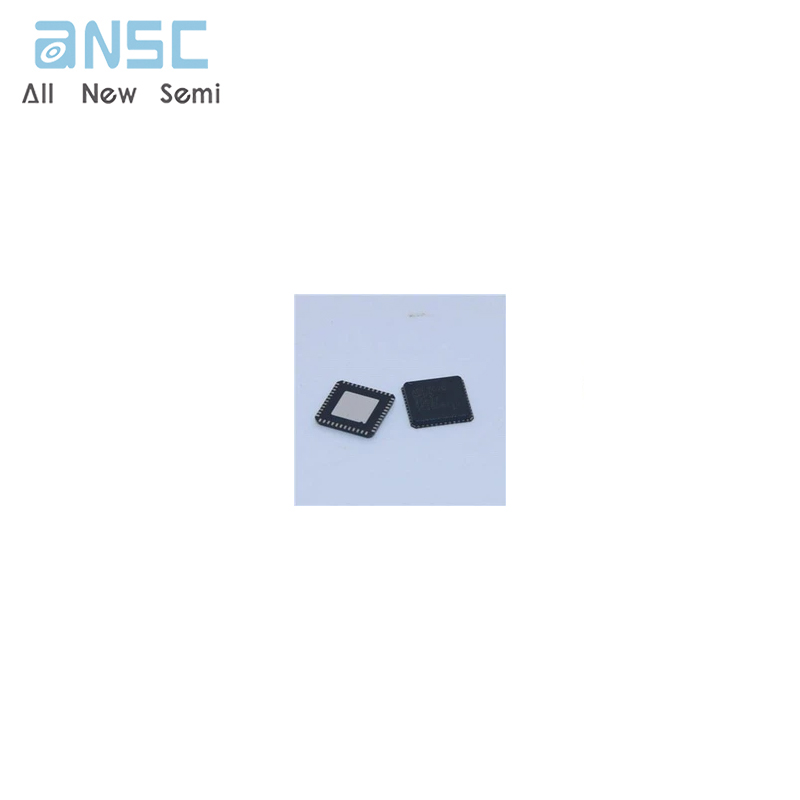

Product Photos

For more product information, please download the PDF
