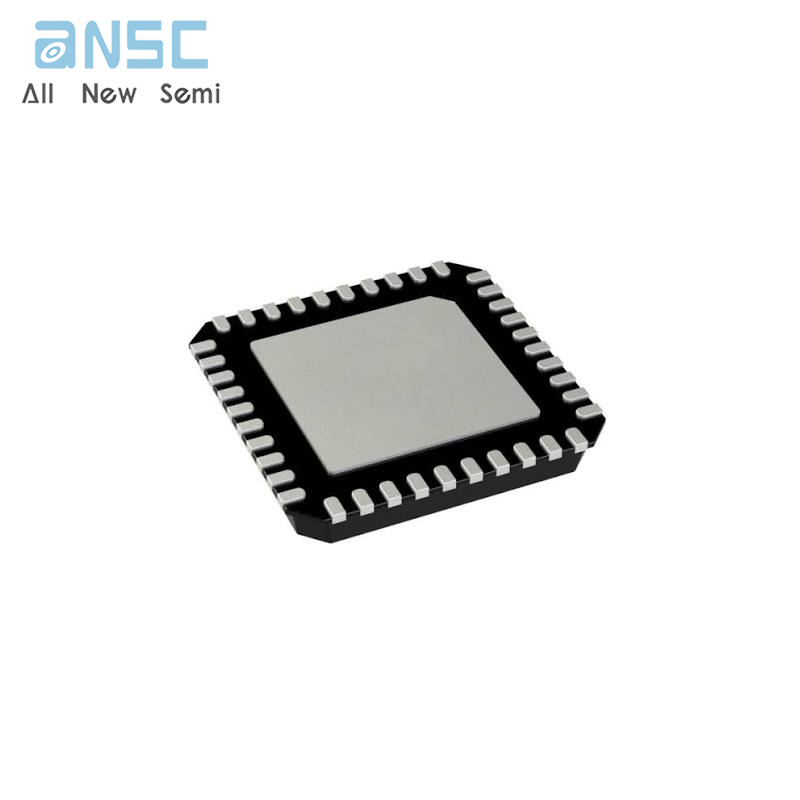

Hot-selling and scarce ADL5386ACPZ-R7 RF Modulator IC 50MHz ~ 2.2GHz 40-VFQFN spot stock

Product Descriptions

The ADL5386 is a quadrature modulator with unmatched integration levels for low intermediate frequency (IF) and radio frequency (RF) transmitters within broadband wireless access systems, microwave radio links, cable modem termination systems, and cellular infrastructure equipment. The ADL5386 operates over a frequency range of 50 MHz to 2200 MHz. Its excellent phase accuracy and amplitude balance supports high data rate, complex modulation for next-generation communication infrastructure equipment.

Product Features

Output frequency range: 50 MHz to 2200 MHz

1 dB output compression: 11 dBm @ 350 MHz

Noise floor: −160 dBm/Hz @ 350 MHz

Sideband suppression: −46 dBc @ 350 MHz

Carrier feedthrough: −38 dBm @ 350 MHz

30 dB of linear AGC dynamic range @ 350 MHz

Single supply: 4.75 V to 5.5 V

40-lead, Pb-free LFCSP_VQ with exposed paddle

Product Applications

Radio-link infrastructures

Cable modem termination systems

Wireless/cellular infrastructure systems

Wireless local loops

WiMAX/broadband wireless access systems

Product Specifications

Product Photos

For more product information, please download the PDF
