ANT/ANT+ and 2.4GHz proprietary System-on-Chip Electronic components BOM Integrated circuit IC NRF52832-QFAB-T

Product Features

• 2.4 GHz transceiver

• -96 dBm sensitivity in Bluetooth® Low Energy mode

• Supported data rates: 1 Mbps, 2 Mbps Bluetooth Low Energy mode

• -20 to +4 dBm TX power, configurable in 4 dB steps

• On-chip balun (single-ended RF)

• 5.3 mA peak current in TX (0 dBm)

• 5.4 mA peak current in RX

• RSSI (1 dB resolution)

• Arm® Cortex®-M4 32-bit processor with FPU, 64 MHz

• 215 EEMBC CoreMark score running from flash memory

• 58 μA/MHz running from flash memory

• 51.6 μA/MHz running from RAM

• Data watchpoint and trace (DWT), embedded trace macrocell (ETM), and instrumentation trace macrocell (ITM)

• Serial wire debug (SWD)

• Trace port

• Flexible power management

• 1.7 V–3.6 V supply voltage range

• Fully automatic LDO and DC/DC regulator system

• Fast wake-up using 64 MHz internal oscillator

• 0.3 μA at 3 V in System OFF mode

• 0.7 μA at 3 V in System OFF mode with full 64 kB RAM retention

• 1.9 μA at 3 V in System ON mode, no RAM retention, wake on RTC

• Memory

• 512 kB flash/64 kB RAM

• 256 kB flash/32 kB RAM

• Nordic SoftDevice ready

• Support for concurrent multi-protocol

• Type 2 near field communication (NFC-A) tag with wakeup-on-field and touch-to-pair capabilities

• 12-bit, 200 ksps ADC - 8 configurable channels with programmable gain

• 64 level comparator

• 15 level low power comparator with wakeup from System OFF mode

• Temperature sensor

• 32 general purpose I/O pins

• 3x 4-channel pulse width modulator (PWM) unit with EasyDMA

• Digital microphone interface (PDM)

• 5x 32-bit timer with counter mode

• Up to 3x SPI master/slave with EasyDMA

• Up to 2x I2C compatible 2-wire master/slave

• I2S with EasyDMA

• UART (CTS/RTS) with EasyDMA

• Programmable peripheral interconnect (PPI)

• Quadrature decoder (QDEC)

• AES HW encryption with EasyDMA

• Autonomous peripheral operation without CPU intervention using PPI and EasyDMA

• 3x real-time counter (RTC)

• Single crystal operation

• Package variants

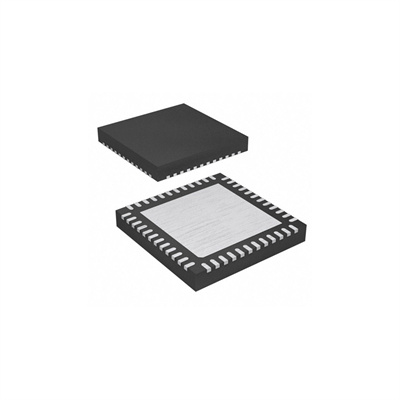

• QFN48 package, 6 × 6 mm

• WLCSP package, 3.0 × 3.2 mm

Product Applications

• Internet of Things (IoT)

• Home automation

• Sensor networks

• Building automation

• Industrial

• Retail

• Personal area networks

• Health/fitness sensor and monitor devices

• Medical devices

• Key fobs and wrist watches

• Interactive entertainment devices

• Remote controls

• Gaming controllers

• Beacons

• A4WP wireless chargers and devices

• Remote control toys

• Computer peripherals and I/O devices

• Mouse

• Keyboard

• Multi-touch trackpad

• Gaming

Specifications

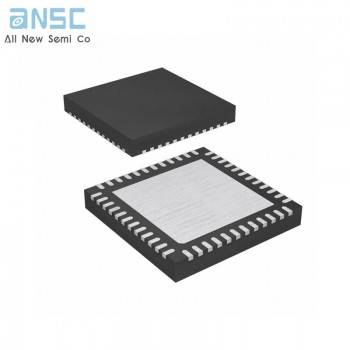

Actual product photos
