Hot-selling and scarce ADRF6604ACPZ-R7 RF Mixer IC Cellular Down Converter 40-LFCSP-VQ spot stock

Product Descriptions

The ADRF6604 is a high dynamic range active mixer with integrated phase-locked loop (PLL) and voltage controlled oscillator (VCO). The PLL/synthesizer uses a fractional-NPLL to generate a fLO input to the mixer. The reference input can be divided or multiplied and then applied to the PLL phase frequency detector (PFD).

The PLL can support input reference frequencies from 12 MHz to 160 MHz. The PFD output controls a charge pump whose output drives an off-chip loop filter.

Product Features

Rx mixer with integrated fractional-N PLL

RF input frequency range: 1200 MHz to 3600 MHz

Internal LO frequency range: 2500 MHz to 2900 MHz

Input P1dB: 14.5 dBm

Input IP3: 27.5 dBm

IIP3 optimization via external pin

SSB noise figure

IP3SET pin open: 14.3 dB

IP3SET pin at 3.3 V: 15.5 dB

Voltage conversion gain: 6.8 dB

Matched 200 Ω IF output impedance

IF 3 dB bandwidth: 500 MHz

Programmable via 3-wire SPI interface

40-lead, 6 mm × 6 mm LFCSP

Product Applications

Cellular base stations

Product Specifications

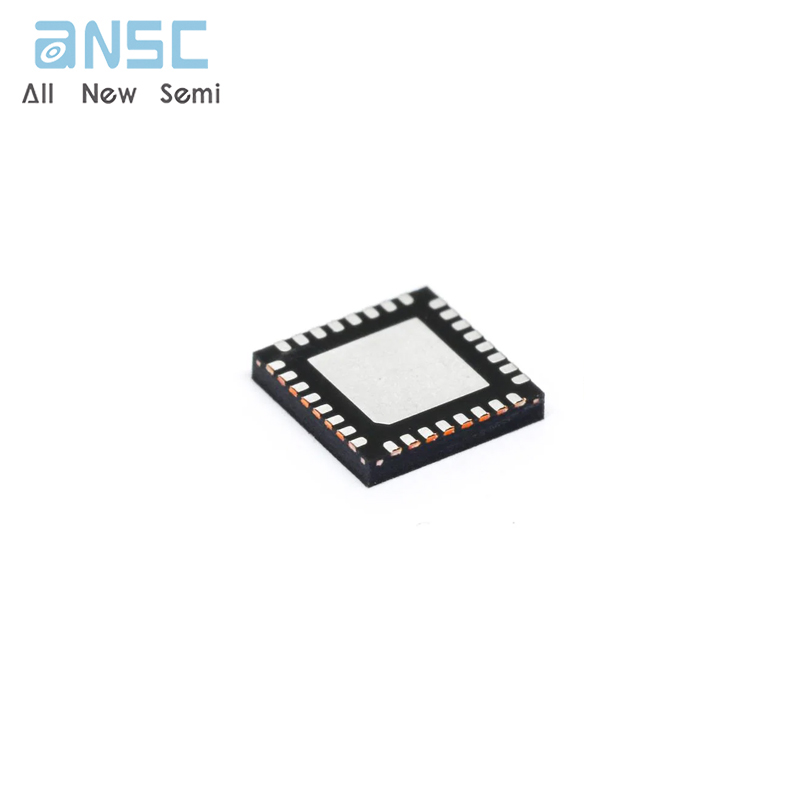

Product Photos

For more product information, please download the PDF
