Product Details

Microchip's LAN8740A/LAN8740Ai are the latest generation of low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) and Wake-On-LAN functionality, which provide system sleep modes for improved power savings. The LAN8740A/LAN8740Ai feature deterministic loop back delay, assuring real-time system performance as well as cable diagnostics which reduce network installation costs. These devices are available in both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges. The LAN8740A/LAN8740Ai are well-suited for Consumer, Embedded and Industrial applications. Additionally, these devices support auto-negotiation, auto-polarity correction, HP Auto-MDIX† and are compliant with IEEE 802.3 and 802.3u standards.

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.

Products Features

•Single-Chip Ethernet PHY

• Flexible power management architecture

• LVCMOS variable I/O voltage range +1.6V to +3.6V

• Integrated 1.2V regulator with disable feature

• Energy Efficient Ethernet (IEEE 802.3az)

• Cable diagnostics

• Deterministic latency

• MII and RMII supported

• Wake-On-LAN

• HP Auto-MDIX support

• Supports commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges

• 32-pin, 5x5mm SQFN, RoHS-compliant packages

Applications:

• Set-top Boxes

• DVRs/PVRs

• Digital TVs/iPTVs

• Printers

• IP and Video Phones

• Industrial Networks

• Embedded/Telecom

• Test/Measurement Instrumentation

• Wireless Access Points

• Power over Ethernet (PoE)

Specifications

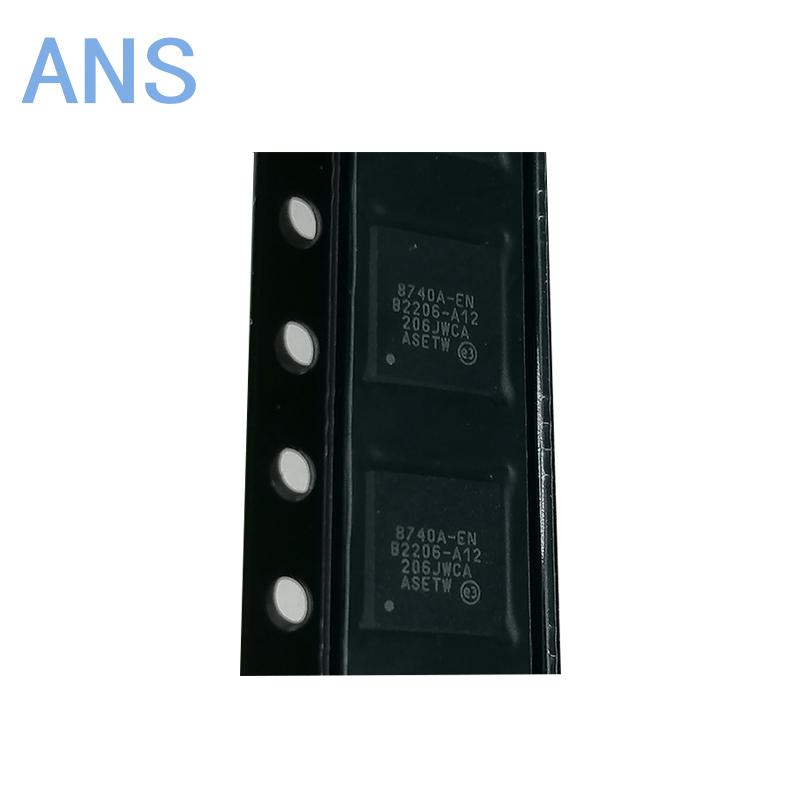

Actual product photos
