Product Details

The TEA5767HN is a single-chip electronically tuned FM stereo radio for low-voltageapplications with fully integrated IF selectivity and demodulation. The radio is completelyadjustment-free and only requires a minimum of small and low cost external components.The radio can be tuned to the European, US and Japanese FM bands.

Product Features

High sensitivity due to integrated low-noise RF input amplifiern

FM mixer for conversion to IF of the US/Europe (87.5 MHz to 108 MHz) and Japanese(76 MHz to 91 MHz) FM band

Preset tuning to receive Japanese TV audio up to 108 MHz

RF Automatic Gain Control (AGC) circuit

LC tuner oscillator operating with low cost fixed chip inductors

FM IF selectivity performed internally

No external discriminator needed due to fully integrated FM demodulator

Crystal reference frequency oscillator; the oscillator operates with a 32.768 kHz clockcrystal or with a 13 MHz crystal and with an externally applied 6.5 MHz referencefrequency

PLL synthesizer tuning system

I2C-bus and 3-wire bus, selectable via pin BUSMODE

7-bit IF counter output via the bus

4-bit level information output via the bus

Soft mute

Signal dependent mono to stereo blend [Stereo Noise Cancelling (SNC)]

Signal dependent High Cut Control (HCC)

Soft mute, SNC and HCC can be switched off via the bus

Adjustment-free stereo decoder

Autonomous search tuning function

Standby mode

Two software programmable ports

Bus enable line to switch the bus input and output lines into 3-state mode

​

Specifications

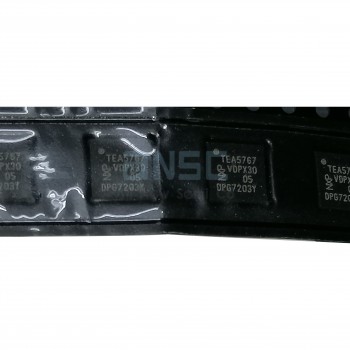

Actual product photos
