Hot-selling and scarce TL3301NF160QJ Tactile Switch SPST-NO Top Actuated Surface Mount spot stock
Manufacturer Product Number
TL3301NF160QJ
Description
TL3301NF160QJ Tactile Switch SPST-NO Top Actuated Surface Mount spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Single pole single throw
• Surface mount
• 6mm x 6mm
• Cap options
• Multiple actuator options
• Silver or gold contacts
• Gull wing or J-lead termination
• Tape & reel packaging
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TL3301NF160QJ |
| Category | Switches |
| Tactile Switches | |
| Mfr | - |
| Series | TL3301 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 6.00mm x 6.00mm |
| Illumination | Non-Illuminated |
| Operating Force | 160gf |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | Polyamide (PA), Nylon |
| Switch Travel | 0.25mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | TL3301 |

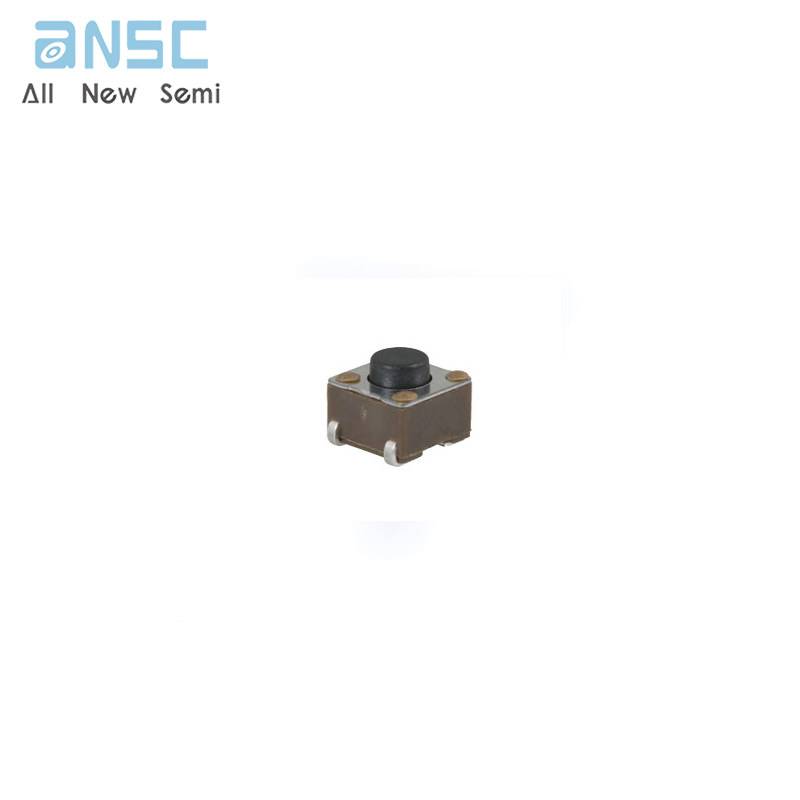

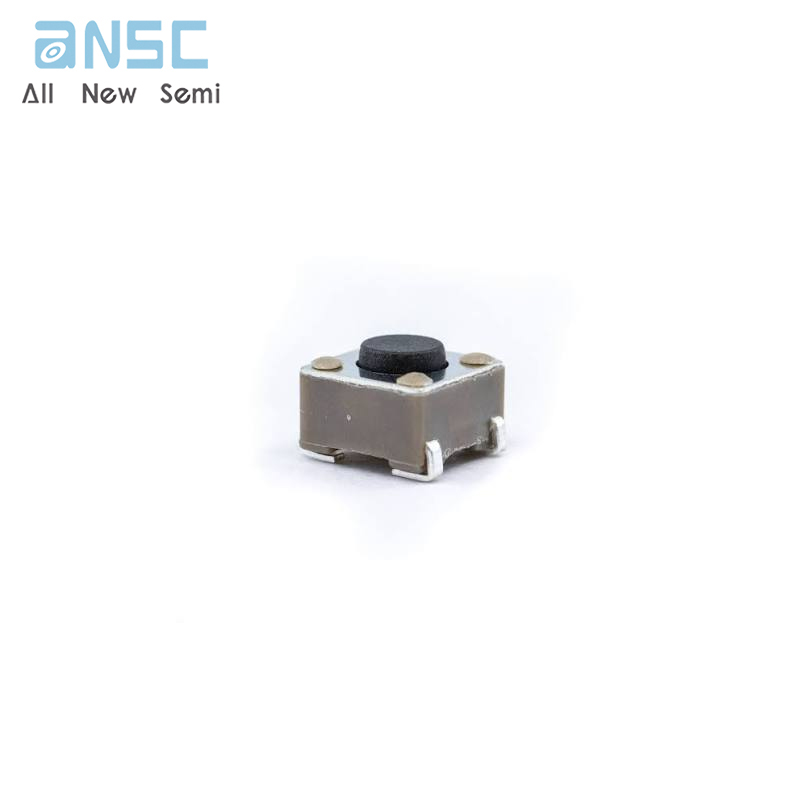

Product Photos
For more product information, please download the PDF
