Hot sale Original NVMFS5113PLT1G Transistors MOSFET P-Channel 60 V 10A (Ta), 64A (Tc) 3.8W (Ta), 150W (Tc) Surface Mount 5-DFN

Manufacturer

Manufacturer Product Number

NVMFS5113PLT1G

Description

NVMFS5113PLT1G Transistors MOSFET P-CH 60V 10A/64A 5DFN

Package Condition

Original

Datasheet

NVMFS5113PLT1G

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Power MOSFET

40 V, 6.9 m, 44 A, Dual N−Channel Logic Level, Dual SO−8FL

Features

• Small Footprint (5x6 mm) for Compact Designs

• Low RDS(on) to Minimize Conduction Losses

• Low Capacitance to Minimize Driver Losses

• NVMFD5852NLWF − Wettable Flanks Option for Enhanced Optical Inspection

• AEC−Q101 Qualified and PPAP Capable

• This is a Pb−Free Device

Product Description

Type#	Description
ANSC PART#	ANSC - NVMFS5113PLT1G
Category	Discrete Semiconductor Products
	Transistors
	FETs, MOSFETs
	Single FETs, MOSFETs
Mfr	/
Series	-
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	/
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	14mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	83 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 150W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Package / Case	8-PowerTDFN, 5 Leads
Base Product Number	NVMFS5113

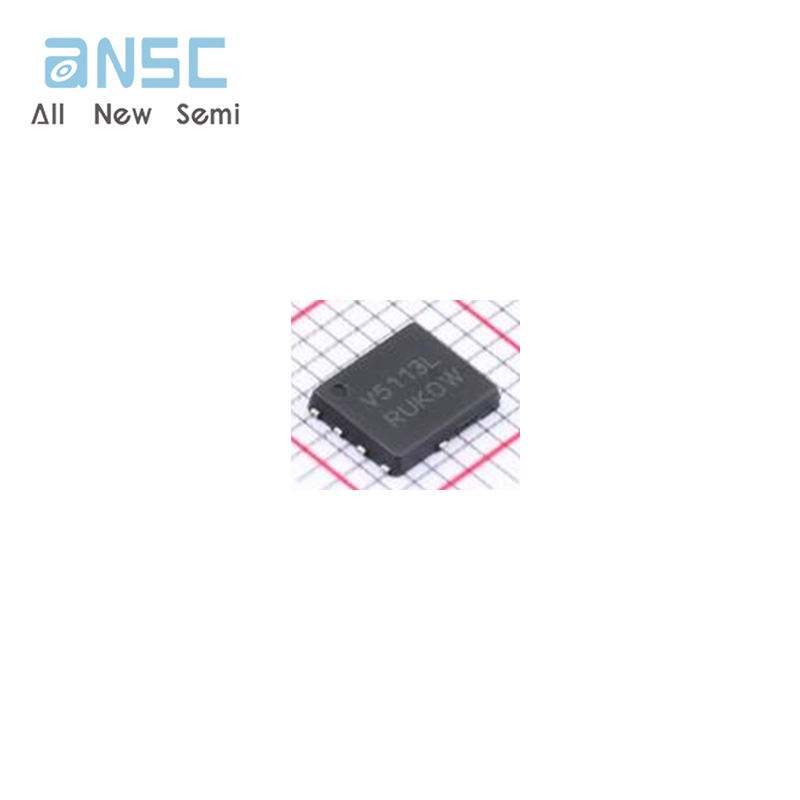

Actual image of the product

NVMFS5113PLT1G

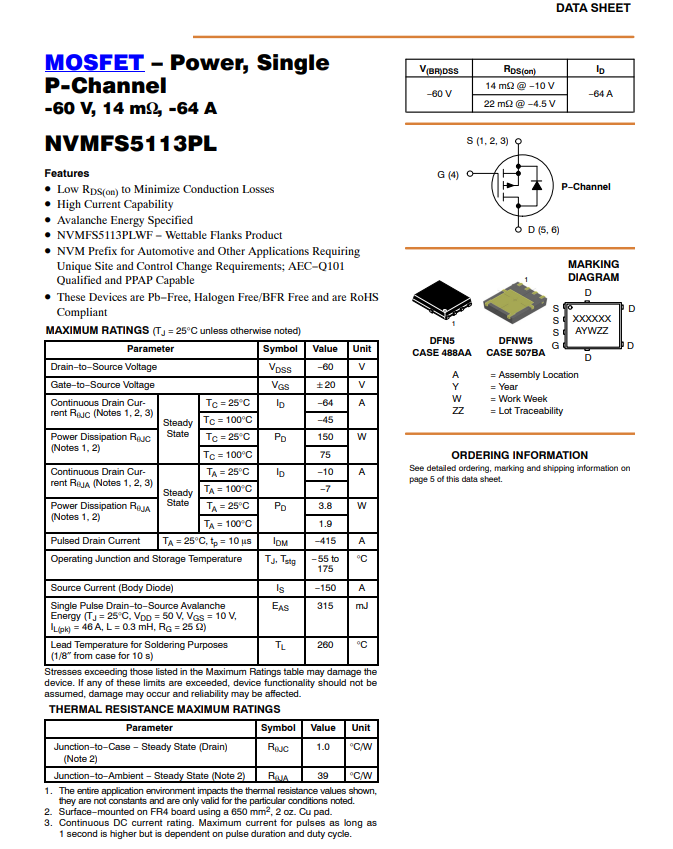

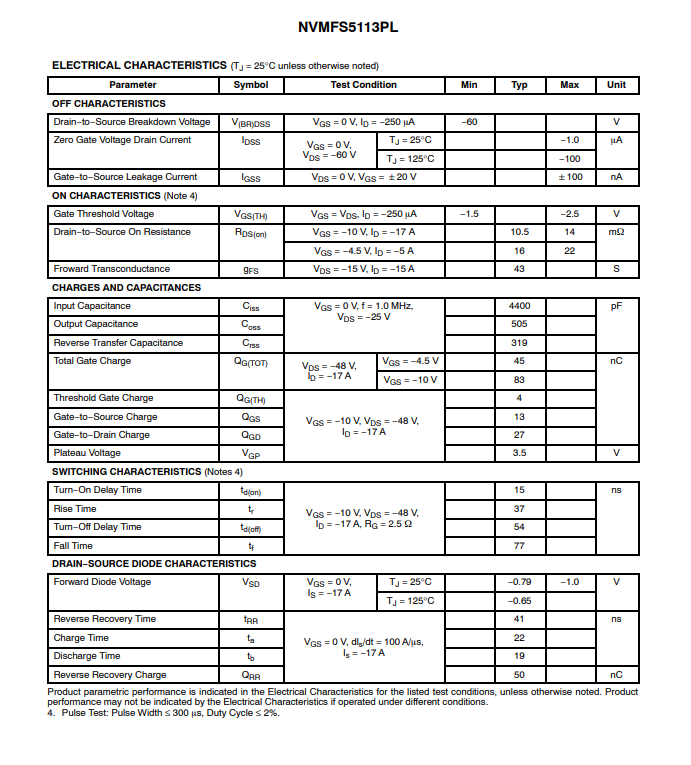

Product datasheet

For more information, please download
