Hot-selling and scarce NCS2372DWR2G 1.0 A Output Current Dual Power Operational Amplifiers I C SOP16 spot stock
Manufacturer Product Number
NCS2372DWR2G
Description
NCS2372DWR2G 1.0 A Output Current Dual Power Operational Amplifiers I C SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NCS2372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications,including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
Product Features
• Output Current to 1.0 A
• Slew Rate of 1.3 V/s
• Wide Bandwidth of 1.1 MHz
• Internal Thermal Shutdown
• Single or Split Supply Operation
• Excellent Gain and Phase Margins
• Common Mode Input Includes Ground
• Zero Deadband Crossover Distortion
• These Devices are Pb−Free and are RoHS Compliant
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NCS2372DWR2G |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 1.4V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 8mA |
| Current - Output / Channel | 1 A |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | NCS2372 |

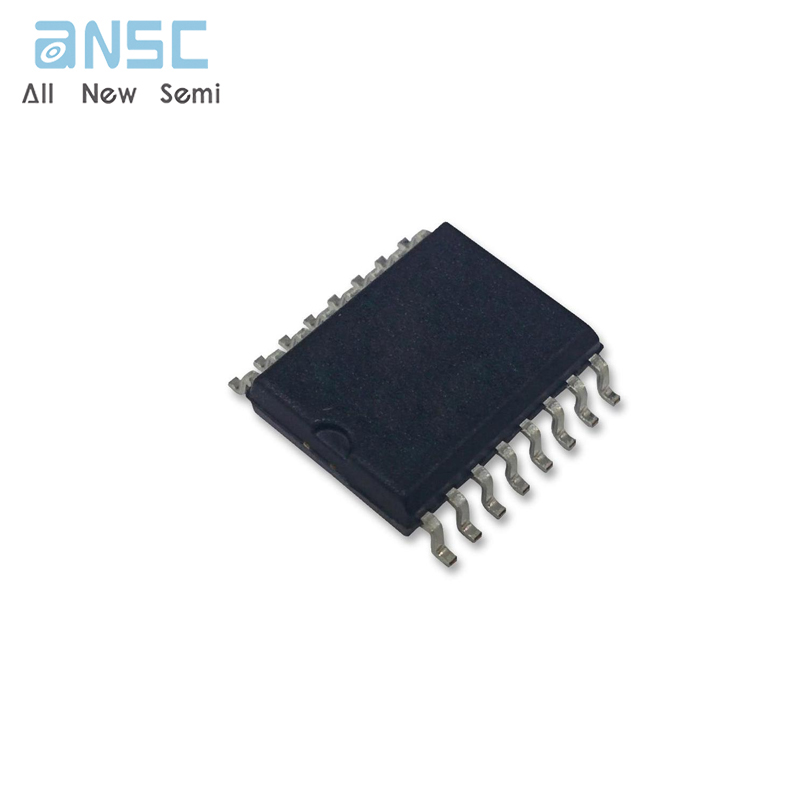

Product Photos
For more product information, please download the PDF
