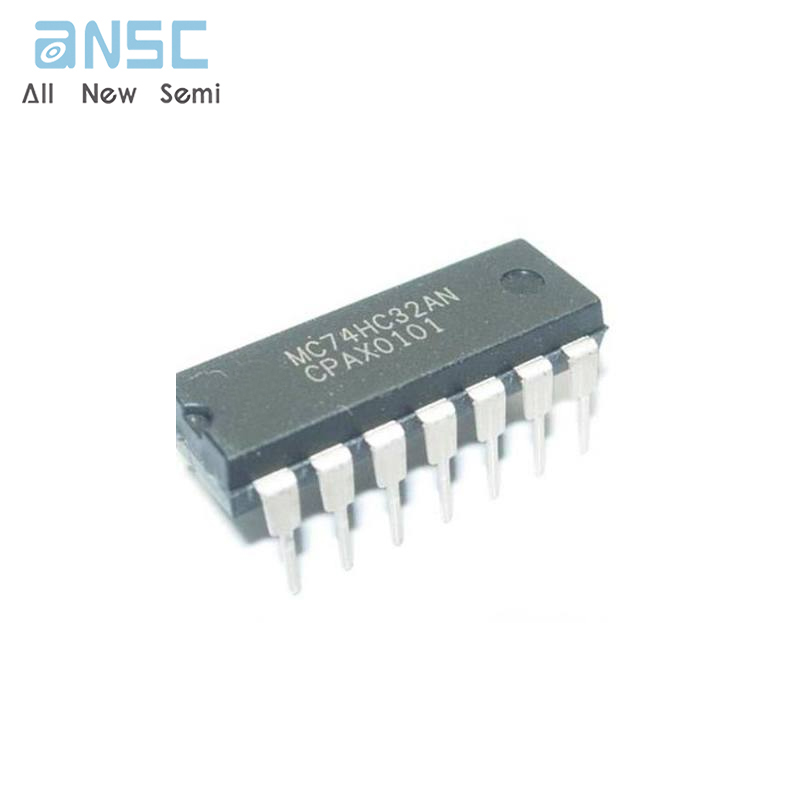

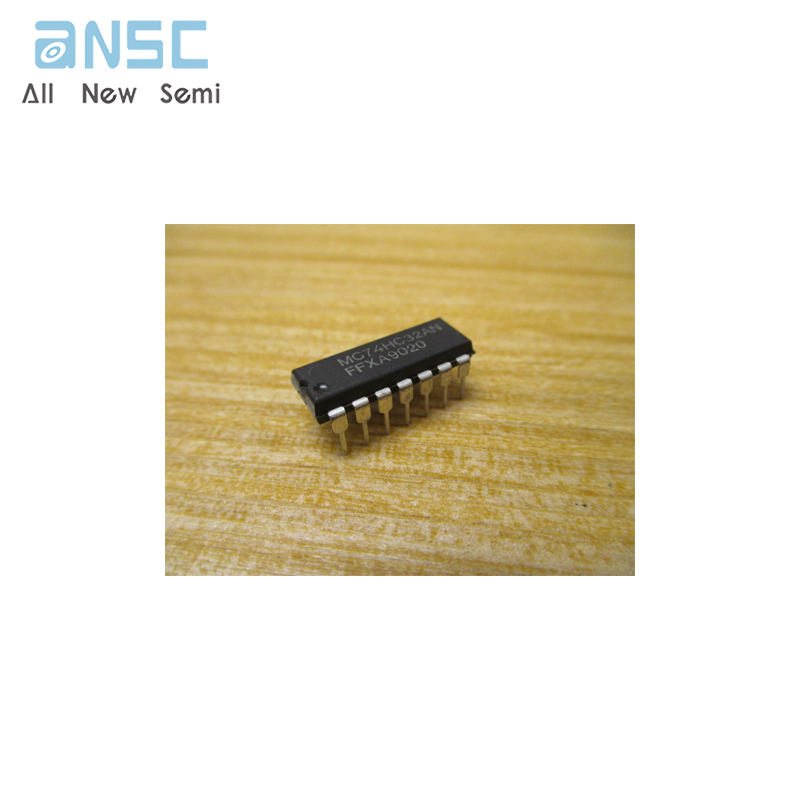

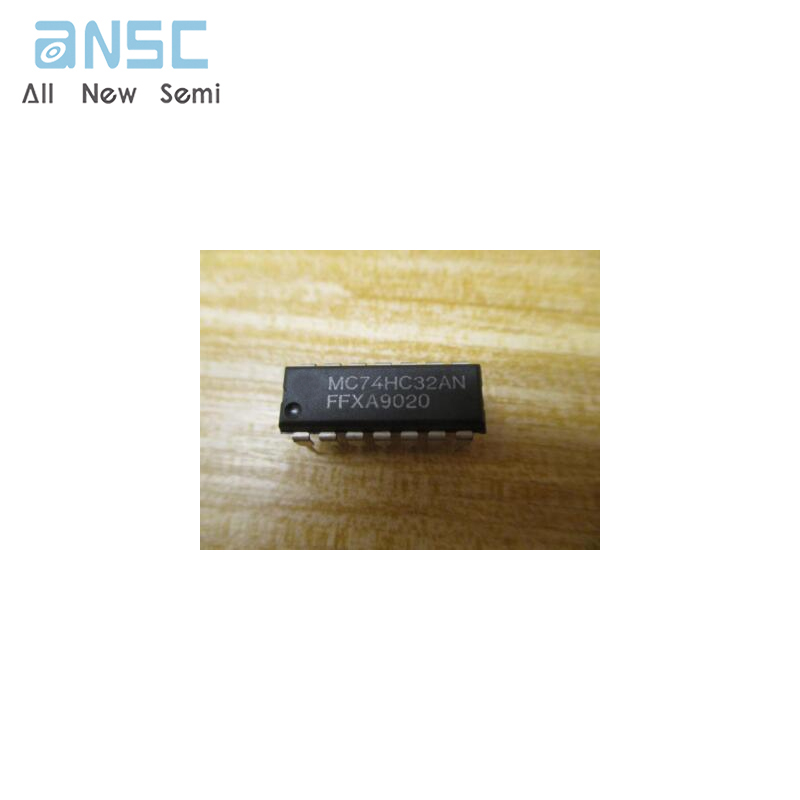

MC74HC32AN Quad 2-Input OR Gate High−Performance Silicon−Gate CMOS DIP14 spot stock
Manufacturer Product Number
MC74HC32AN
Description
MC74HC32AN Quad 2-Input OR Gate
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC74HC32A/MC74HCT32A is identical in pinout to the LS32. The MC74HC32A device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HCT32A inputs are compatible with Standard CMOS or TTL outputs.
Product Features
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT)
• Low Input Current: 1uA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7 A Requirements
• Chip Complexity: 48 FETs or 12 Equivalent Gates
• −Q suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC74HC32AN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 uA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -55℃ ~ 125℃ ~ |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74HC32 |
