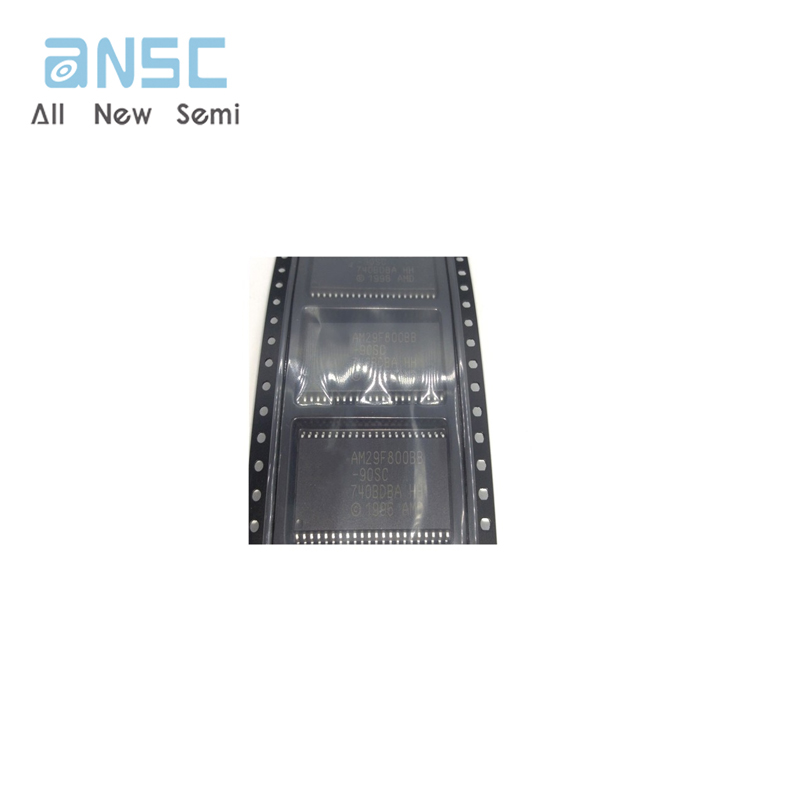

You can contact me for the best price AM29F800BB-90SC IC Flash, 512KX16, 90ns, PDSO44, MO-180AA, SOP-44 Memory Hot sale Original
Manufacturer Product Number
AM29F800BB-90SC
Description
AM29F800BB-90SC IC 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 5.0 Volt-only, Boot Sector Flash Memory
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

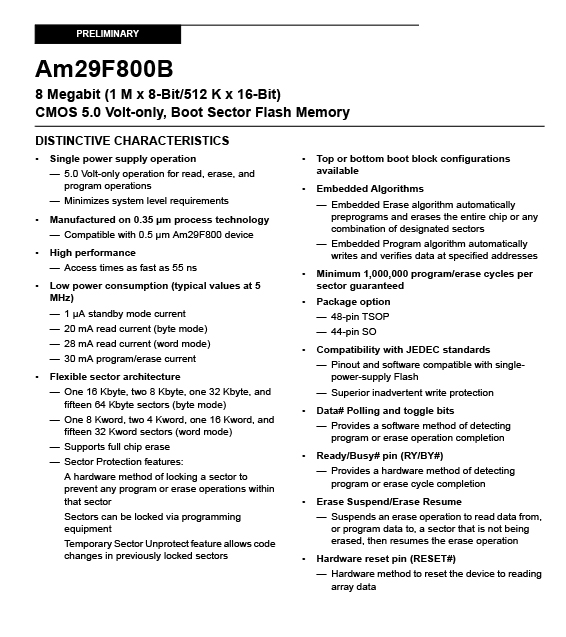

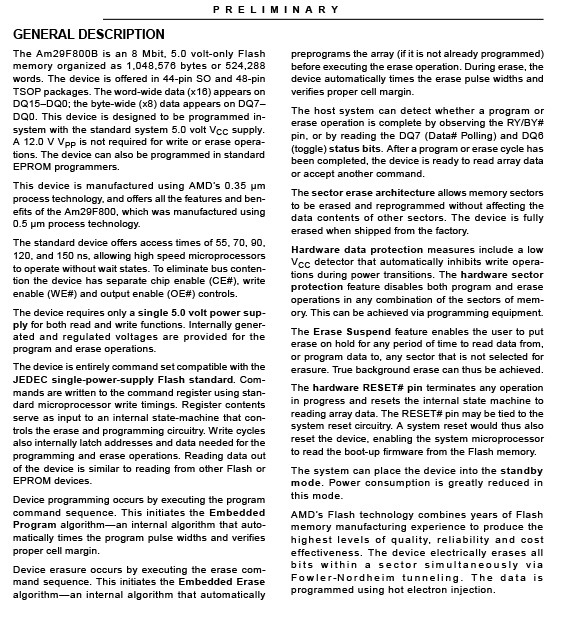

GENERAL DESCRIPTION The Am29F800B is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 44-pin SO, 48-pin TSOP, and 48-ball FBGA packages. The device is also available in Known Good Die (KGD) form. For more information, refer to publication number 21631. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 V VPP is not required for write or erase operations. The device can also be programmed in standard EPROM programmers. DISTINCTIVE CHARACTERISTICS ■ Single power supply operation — 5.0 Volt-only operation for read, erase, and program operations — Minimizes system level requirements ■ Manufactured on 0.32 µm process technology — Compatible with 0.5 µm Am29F800 device ■ High performance — Access times as fast as 55 ns ■ Low power consumption (typical values at 5 MHz) — 1 µA standby mode current — 20 mA read current (byte mode) — 28 mA read current (word mode) — 30 mA program/erase current ■ Flexible sector architecture — One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors (byte mode) — One 8 Kword, two 4 Kword, one 16 Kword, and fifteen 32 Kword sectors (word mode) — Supports full chip erase — Sector Protection features: A hardware method of locking a sector to prevent any program or erase operations within that sector — Sectors can be locked via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors ■ Top or bottom boot block configurations available ■ Embedded Algorithms — Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors — Embedded Program algorithm automatically writes and verifies data at specified addresses ■ Minimum 1,000,000 program/erase cycles per sector guaranteed ■ 20-year data retention at 125°C — Reliable operation for the life of the system ■ Package option — 48-pin TSOP — 44-pin SO — 48-ball FBGA — Known Good Die (KGD) (see publication number 21631) (Continue ...) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- AM29F800BB-90SC |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | SOP, SOP44,.63 |
| Pin Count | 44 |
| Access Time-Max | 90 ns |
| Additional Feature | MINIMUM 1,000,000 PROGRAM/ERASE CYCLES PER SECTOR; 20-YEAR DATA RETENTION |
| Alternate Memory Width | 8 |
| Boot Block | BOTTOM |
| Command User Interface | YES |
| Data Polling | YES |
| Data Retention Time-Min | 20 |
| Endurance | 1000000 Write/Erase Cycles |
| Length | 28.2 mm |
| Memory Density | 8388608 bit |
| Memory IC Type | FLASH |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Sectors/Size | 1,2,1,15 |
| Number of Terminals | 44 |
| Number of Words | 524288 words |
| Number of Words Code | 512000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Organization | 512KX16 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP44,.63 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | PARALLEL |
| Programming Voltage | 5 V |
| Qualification Status | Not Qualified |
| Ready/Busy | YES |
| Seated Height-Max | 2.8 mm |
| Sector Size | 16K,8K,32K,64K |
| Standby Current-Max | 0.000005 A |
| Supply Current-Max | 0.06 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Toggle Bit | YES |
| Type | NOR TYPE |
| Width | 13.3 mm |
