Hot-selling and scarce AT28C64E-15SC EEPROM Memory IC 64Kbit Parallel 150 ns 28-SOIC spot stock
Manufacturer Product Number
AT28C64E-15SC
Description
AT28C64E-15SC EEPROM Memory IC 64Kbit Parallel 150 ns 28-SOIC spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AT28C64 is a low-power, high-performance 8,192 words by 8-bit nonvolatile electrically erasable and programmable read only memory with popular, easy-to-use features. The device is manufactured with Atmel’s reliable nonvolatile technology.
Product Features
• Fast Read Access Time – 120 ns
• Fast Byte Write – 200 µs or 1 ms
• Self-timed Byte Write Cycle
– Internal Address and Data Latches
– Internal Control Timer
– Automatic Clear Before Write
• Direct Microprocessor Control
– READY/BUSY Open Drain Output
– DATA Polling
• Low Power
– 30 mA Active Current
– 100 µA CMOS Standby Current
• High Reliability
– Endurance: 104 or 105 Cycles
– Data Retention: 10 Years
• 5V ± 10% Supply
• CMOS and TTL Compatible Inputs and Outputs
• JEDEC Approved Byte-wide Pinout
• Commercial and Industrial Temperature Ranges
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AT28C64E-15SC |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 64Kbit |
| Memory Organization | 8K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 200µs |
| Access Time | 150 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | AT28C64 |

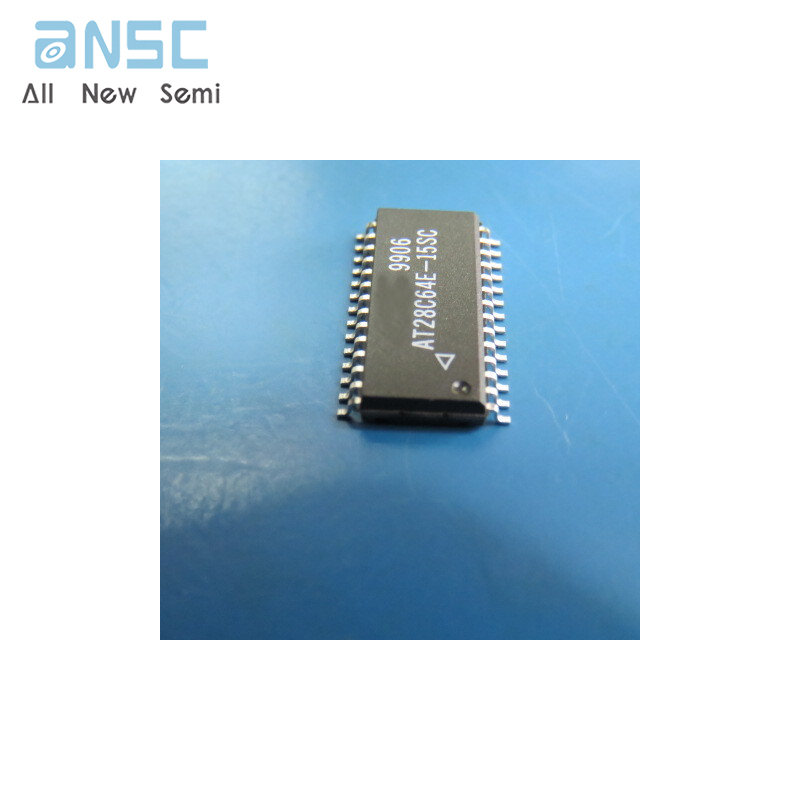

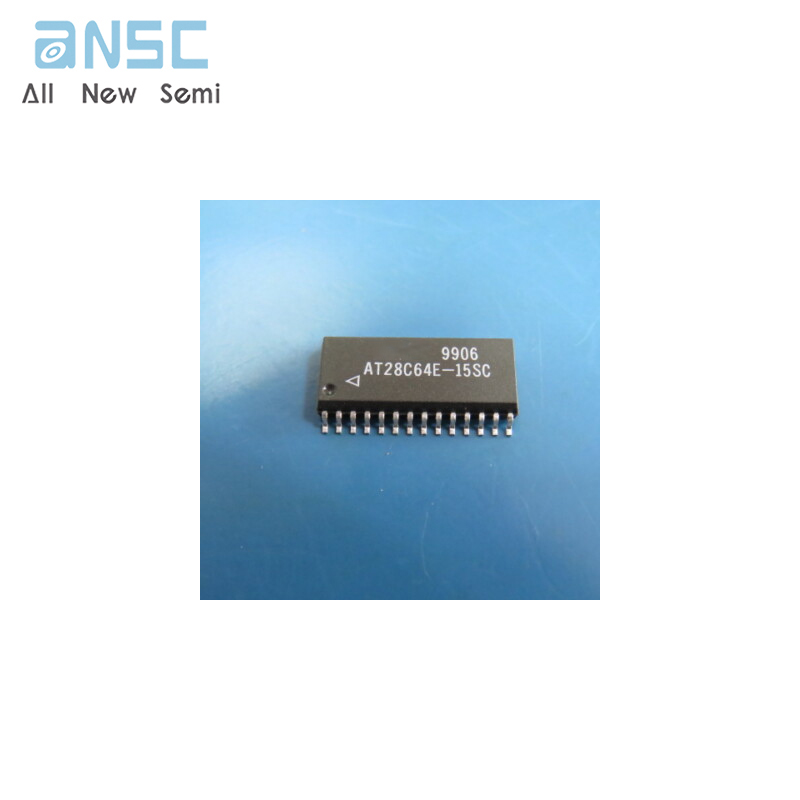

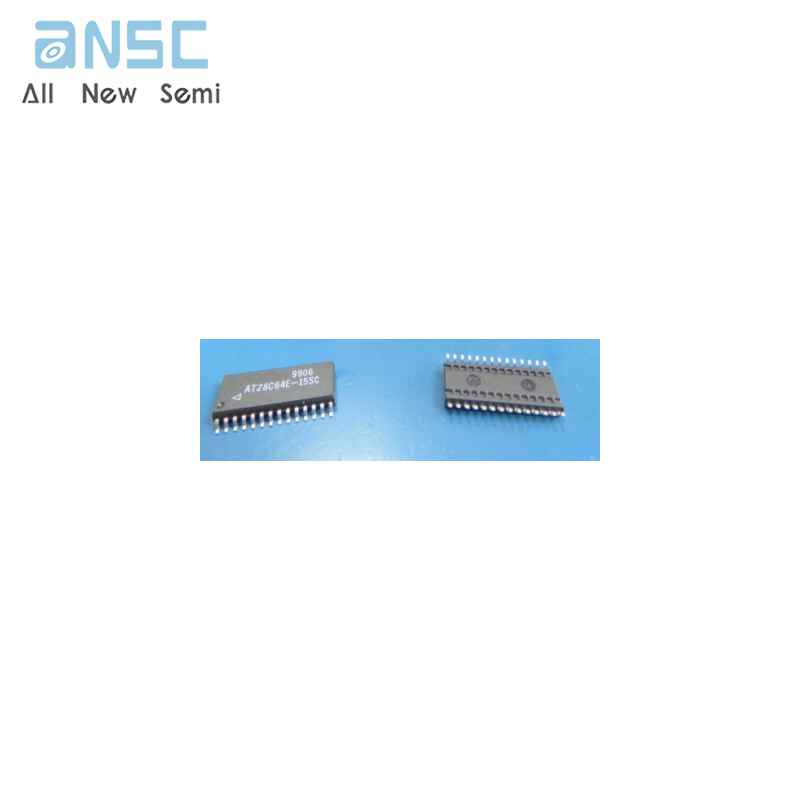

Product Photos
For more product information, please download the PDF
