Hot-selling and scarce ADM1485ARZ 5 V Low Power EIA RS-485 Transceiver SOP8 spot stock

Product Descriptions

The ADM1485 is a differential line transceiver suitable for highspeed bidirectional data communication on multipoint bus transmission lines . It is designed for balanced data transmission andcomplies with both RS-485 and RS-422 EIA Standards . The partcontains a differential line driver and a differential line receiver .Both the driver and the receiver may be enabled independently .When disabled, the outputs are three-stated .

The ADM1485 operates from a single 5 V power supply .Excessivepower dissipation caused by bus contention or by output shortingis prevented by a thermal shutdown circuit . This feature forcesthe driver output into a high impedance state if, during fault conditions, a significant temperature increase is detected in the internaldriver circuitry .

Up to 32 transceivers may be connected simultaneously on a bus,but only one driver should be enabled at any time .It is important,therefore,that the remaining disabled drivers do not load the bus .To ensure this, the ADM1485 driver features high outputimpedance when disabled and also when powered down .

Product Features

Meets EIA RS-485 Standard

30 Mbps Data Rate

Single 5 V Supply

–7 V to +12 V Bus Common-Mode Range

High Speed, Low Power BiCMOS

Thermal Shutdown Protection

Short-Circuit Protection

Driver Propagation Delay: 10 ns

Receiver Propagation Delay: 15 ns

High-Z Outputs with Power Off

Superior Upgrade for LTC1485

Product Applications

Low Power RS-485 Systems

DTE-DCE Interface

Packet Switching

Local Area Networks

Data Concentration

Data Multiplexers

Integrated Services Digital Network (ISDN)

Product Specification

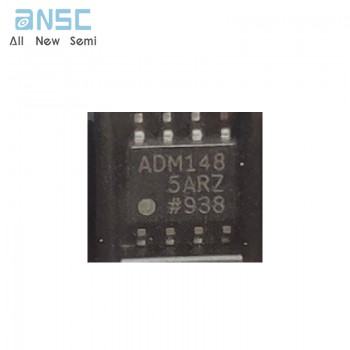

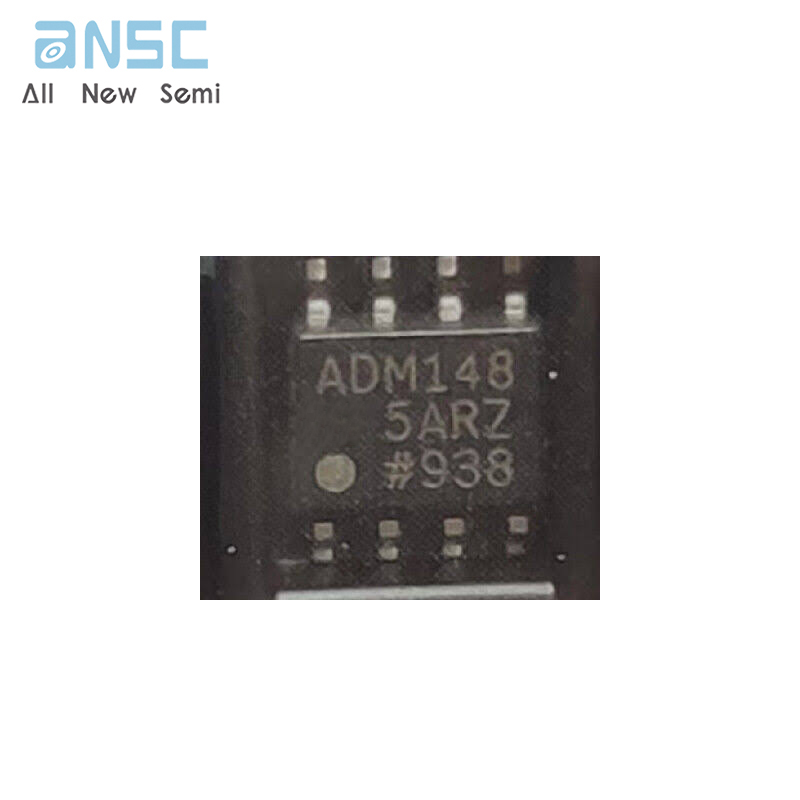

Product Photos

For more product information, please download the PDF
