Hot-selling and scarce LMV824MX Low Power RRO 5 MHz Operational Amplifiers SOP14 spot stock

Product Descriptions

The  LMV821/LMV822/LMV824  op  amps  bringperformance and economy to low voltage, low powersystems . With a 5 MHz unity-gain frequency, at 2.7 Vsupply,  and a 1.4 V/µs slew rate,  the quiescentcurrent is only 220 µA per amplifier . They provide railto rail output (RRO) swing into 600 Ωload . The inputcommon-mode voltage range includes ground andthe maximum input offset voltage is 3.5 mV . They arealso capable of easily driving large capacitive loadsas indicated in the applications section .

The LMV821 single op amp is available in the tinySC70-5 package, which is about half the size of theprevious   title   holder,     the   SOT23-5 .     TheLMV824NDGV is  specified over   the extendedindustrial   temperature range and is in a TVSOPpackage .

Overall,  the LMV821/LMV822/LMV824 devices arelow voltage,  low power and performance op ampsdesigned for  a wide range of  applications at  aneconomical price .

Product Features

•   Qualified for Automotive Applications

•   AEC-Q100 Qualified With the Following Results:

– LMV822-Q1 And LMV824-Q1 Are Available in Automotive AEC-Q100 Grade 1 Version

•   For Vs = 5 V, Typical Supply Values Unless Otherwise Noted

•   LMV824 Available With Extended Temperature Range to 125°C

•   Small SC70-5 Package 2.0 x 1.25 x 0.95 mm

•   Specified Performance At 2.5 V, 2.7 V and 5 V

•   VOS 3.5 mV (Max)

•   TCVOS 1 uV/°C

•   Gain Bandwidth Product At 2.7 V, 5 MHz

•   ISupply At 2.7 V Supply, 220 μA per Amplifier

•   Slew Rate 1.4 V/µs (Min)

•   CMRR 90 dB

•   PSRR 85 dB

•   VCM At 5 V Supply, -0.3 V to 4.3 V

•   Rail to Rail Output (RRO)

– 600 ΩLoad, 160 mV From Rail

– 10 kΩLoad, 55 mV From Rail

•   Stable Performance with Capacitive Loads

Product Applications

•   Cordless Phones

•   Cellular Phones

•   Laptops

•   PDAs

•   PCMCIA

Product Specification

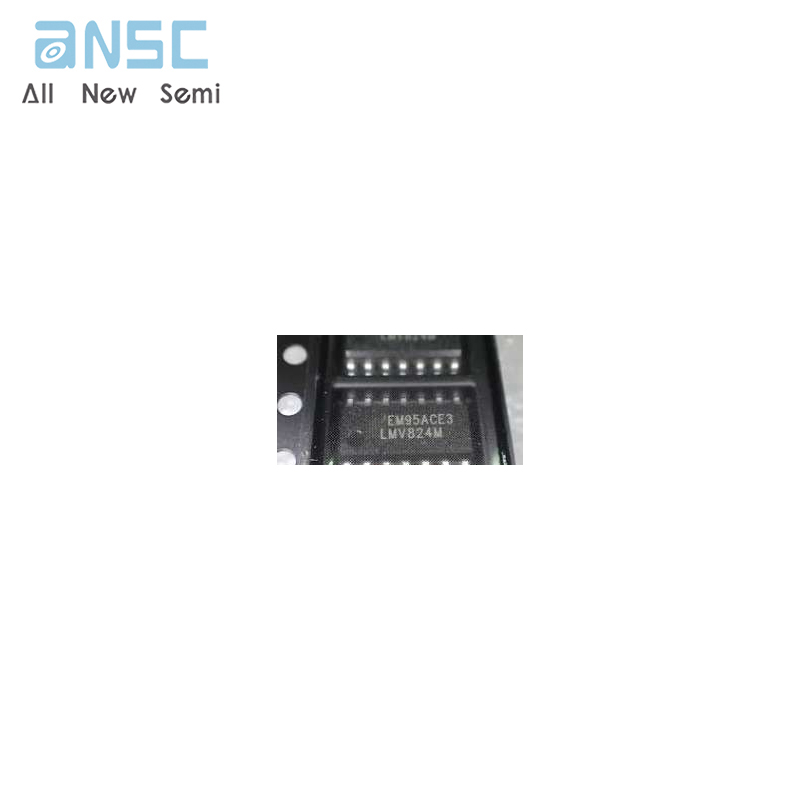

Product Photos

For more product information, please download the PDF
